Mecanumeric MECAPRO 3020
EUROPE (Western and Northern)

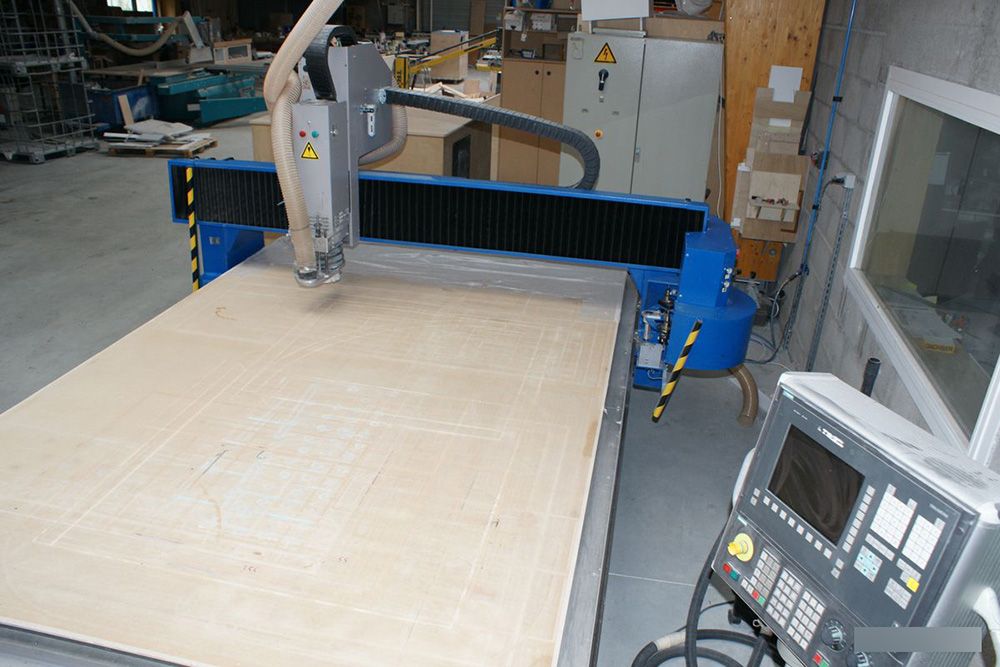

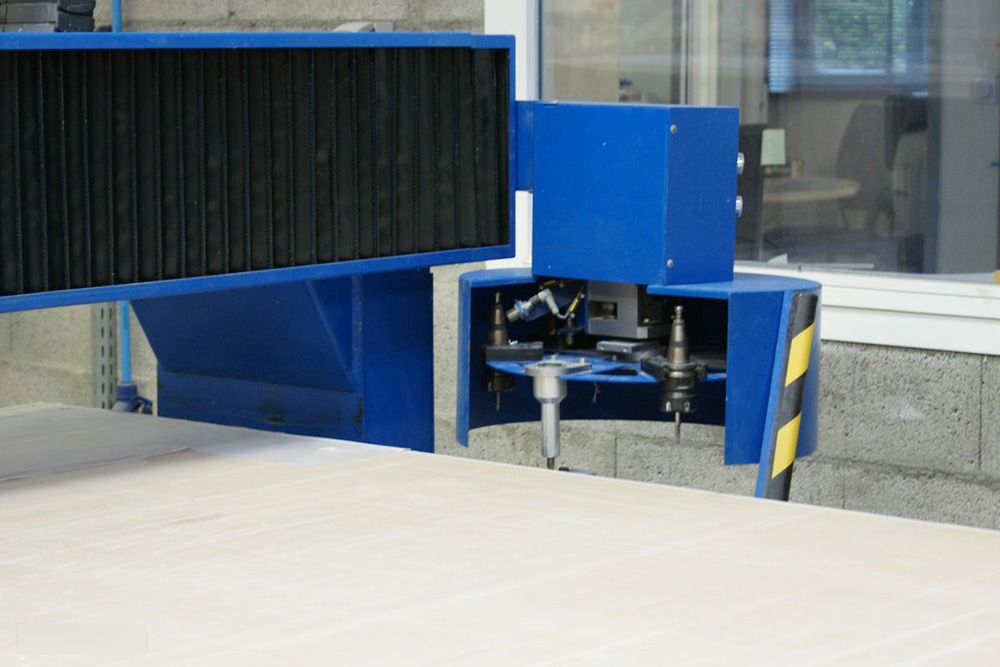

MECAPRO 3020 SIEMENS CNC milling machine with automatic rotary feeder for 6 tools.
Ideal for milling non-ferrous metals (aluminum, Dibond, etc.) as well as wood (plywood, medium density fiberboard, etc.),
solid surfaces such as KRION, CORIAN, or thermoformable plastics (HDPE, PMMA, PVC, Komacel, etc.).
Rare and sought-after configuration (because the CNC control can always be repaired by SIEMENS or MECANUMERIC in the event of a breakdown).
Requires 380V 3-phase / 40A.
This ready-to-use CNC milling machine was upgraded in 2021 by MECANUMERIC (100% FRENCH MANUFACTURED IN ALBI TARN).

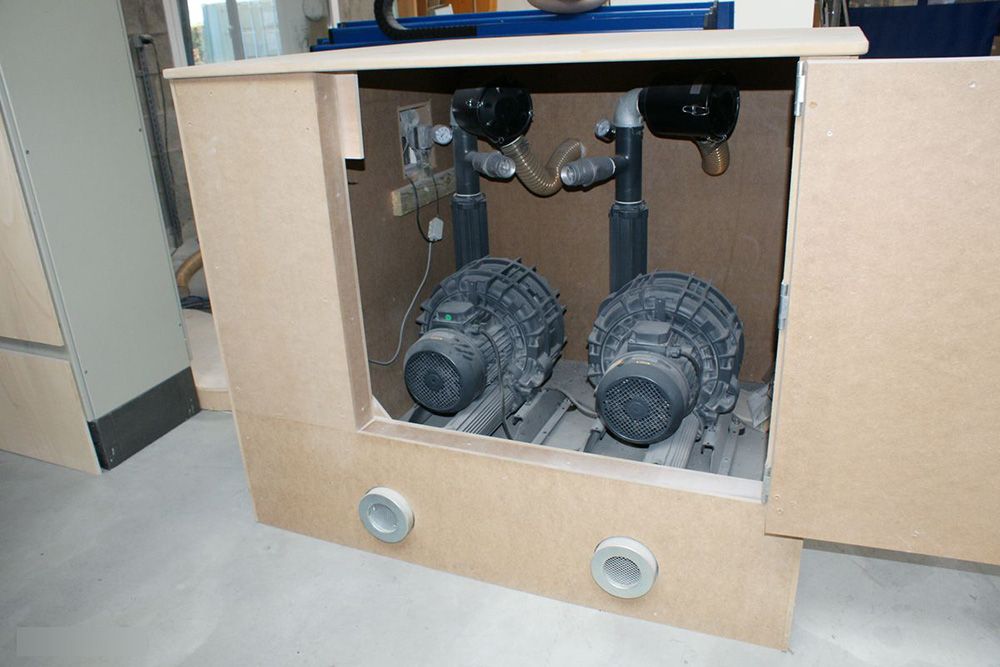

Multi-zone vacuum table equipped with two 7.5 kW side-channel vacuum pumps.
Equipped with filters and silencers (New equipment from 2021)

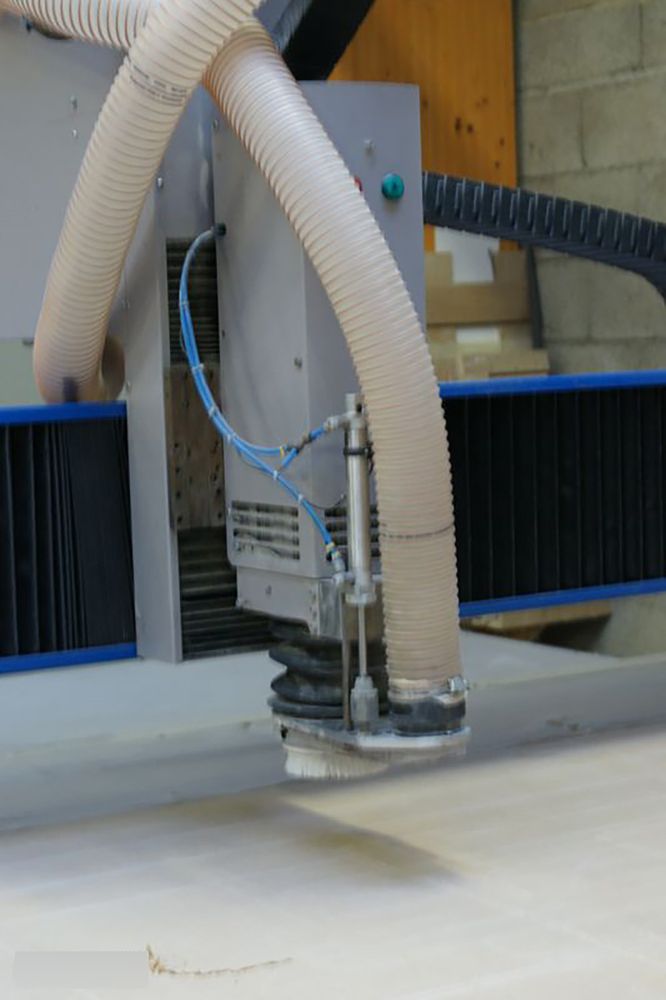

OMLAT 6.5 kW 40,000 RPM air-cooled milling spindle
Useful cutting table format: X 3050 x Y 2000 x Z axis 200 mm.
Overall dimensions: 4580 x 2930 x H2250
Weight: 4.5 tons
Very easy-to-use software
Air pressure required: 6 bar minimum
Machine in operation – demonstration possible
