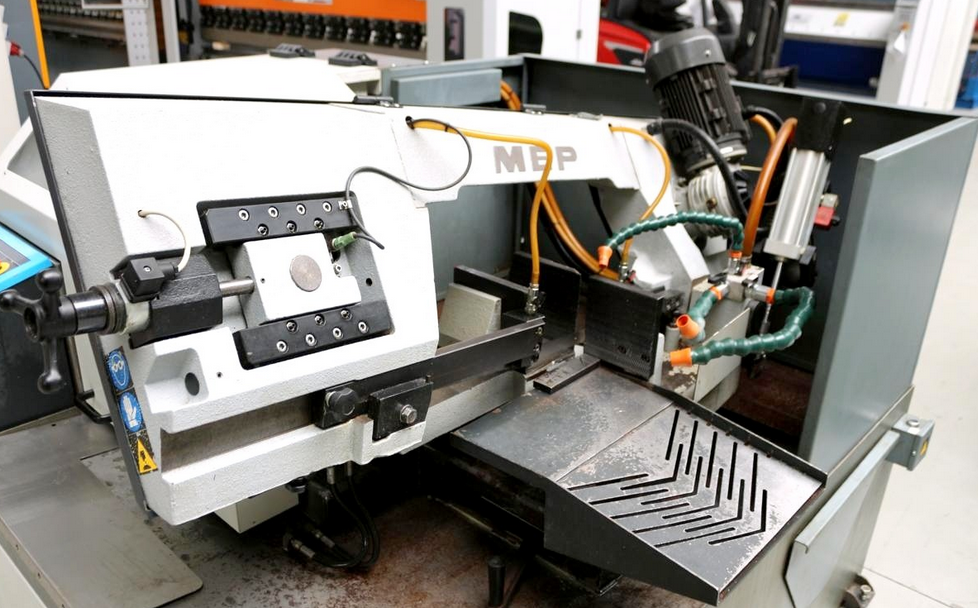

MEP SHARK 331-1 NC 5.0 SPIDER Band saw Control MEP CNC

Cutting Capacity (90° Flat) 330×260 mm
Cutting Capacity (90° Square) 260×260 mm
Cutting Capacity (45° Round) 260 mm
Cutting Capacity (60° Round) 180 mm
Cutting Range 300 mm

Band Speed 15–100 m/min
Vice Opening 340 mm
Saw Blade Dimensions 3650×27×0.9 mm

Automatic Feed Length 9999.9 mm
Minimum Feed 2.0 mm
Minimum Cutting Diameter 5.0 mm

Total Power Requirement 2.2 kW
Machine Weight 1240 kg
Machine Dimensions 1800×1900×1750 mm

Equipped With
Electro-hydraulic fully automatic band saw system
Semi-automatic mode (0°–60° left cuts)
MEP 50 CNC control with 7" touchscreen
10-program memory (up to 9999 pieces per program)
Stepper motor material feed with ball screw
600 mm single stroke repeatable feed system
Adjustable feeder protective cover
Joystick-controlled saw head and feeder movement
Automatic cut start detection
Adjustable cast steel deflection wheels
Blade tension monitoring system
Carbide blade guides
Automatic cutting load monitoring
Quick-adjust vice with interchangeable jaws
Extendable chip tray and coolant tank
Dual coolant pumps
Saw blade cleaning brush
Operating manual
