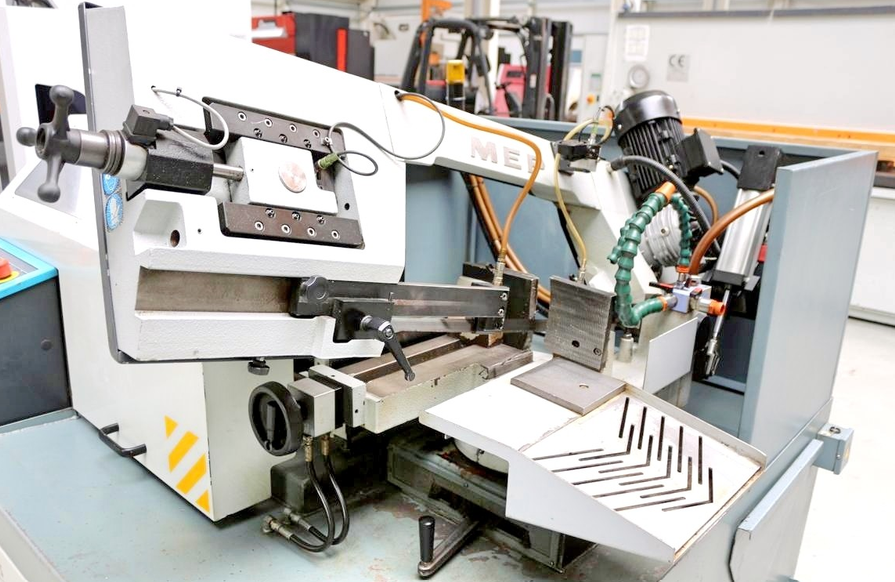

MEP SHARK 331-1 NC 5.0 SPIDER Band saw MEP CNC

Cutting Range: 300 mm
Capacity 90° Round: 300 mm
Capacity 90° Flat: 330 × 260 mm
Capacity 90° Square: 260 × 260 mm
Capacity 45° Round: 260 mm
Capacity 45° Flat: 270 × 200 mm
Capacity 45° Square: 250 × 250 mm
Capacity 60° Round: 180 mm
Capacity 60° Flat: 170 × 170 mm
Capacity 60° Square: 180 × 180 mm
Control: MEP CNC
Automatic Feed Length: 9999.9 mm
Minimum Feed: 2.0 mm
Minimum Cutting Diameter: 5.0 mm
Band Speed: 15–100 m/min
Vice Opening: 340 mm
Saw Blade Size: 3650 × 27 × 0.9 mm
Total Power: 2.2 kW
Weight: 1240 kg
Machine Dimensions: 1800 × 1900 × 1750 mm
Electro-hydraulic Fully Automatic Band Saw
Semi-automatic Function
Cutting Angle: 0° to 60° Left
7 in Touch Screen
10 Programs
Maximum 9999 Pieces per Program
Ball Screw Material Feed
Stepper Motor Feed
Single Feed Stroke: 600 mm
Positioning Accuracy: ±0.1 mm / 600 mm
Protective Feed Cover
Safety Limit Switch
Adjustable Cutting Feed
Joystick Control
Automatic Cut Start Detection
Cast Steel Guide Wheels
Saw Blade Tension Control
Carbide Blade Guides
Automatic Cutting Load Monitoring
Quick-adjust Vice
Interchangeable Clamping Jaws
Interchangeable Stop Jaws
Extendable Chip Tray
Coolant Tank
2 Electric Coolant Pumps
Coolant Cleaning Gun
Chip Removal Brush
Operating Manual
