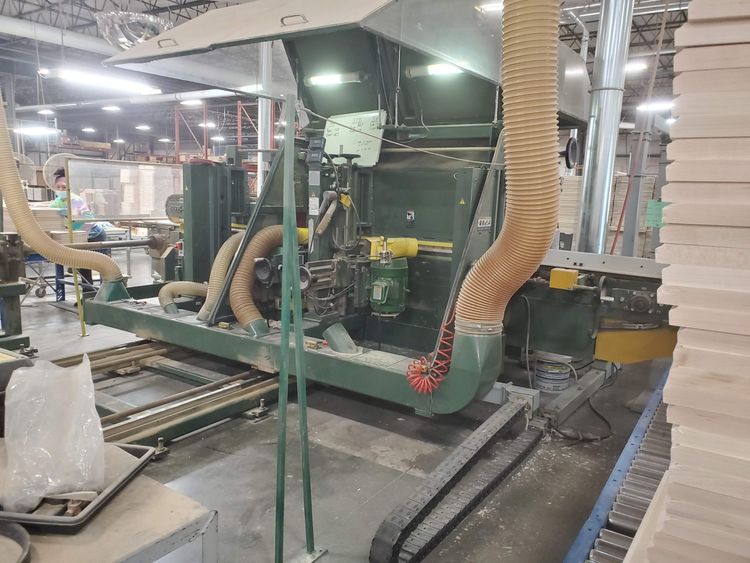

Mereen Johnson 2050 Double End Tenoner

Maximum Width Capacity: 96" to Outside of Feed Chains
Minimum Width: 5-1/4"
Lay-Up Area: 30"
First Station (Not Currently Installed): Trims Saws, 10 HP Each, Tilting
Second Station: High-Speed Jump Copes, 10 HP Each
Third Station: High-Speed Copes, 10 HP Each
Cope Unit Spindles: 1-1/4" Diameter x 3-1/4" Un-Threaded Tool Space
Fourth Station: Tandem Sanding Wheels, 0.33 HP Motors, Counter-Rotating
Fifth Station: Tandem Sanding Wheels, 0.33 HP Motors, Counter-Rotating
Left-Hand Traverse via 3 HP Motor
Feed Drive: 7-1/2 HP Motor
Variable Speed Feed from 15 - 75 FPM
1-3/4" Wide Multi-Vee Feed Chains
Flip-up Feed Lugs Spaced at 10" On-Centers
Urethane Block Chain Hold-Downs
Sound Enclosure
Stand-Alone Operator Control w/ Allen-Bradley PanelView 1000 Interface
460v, 3ph
