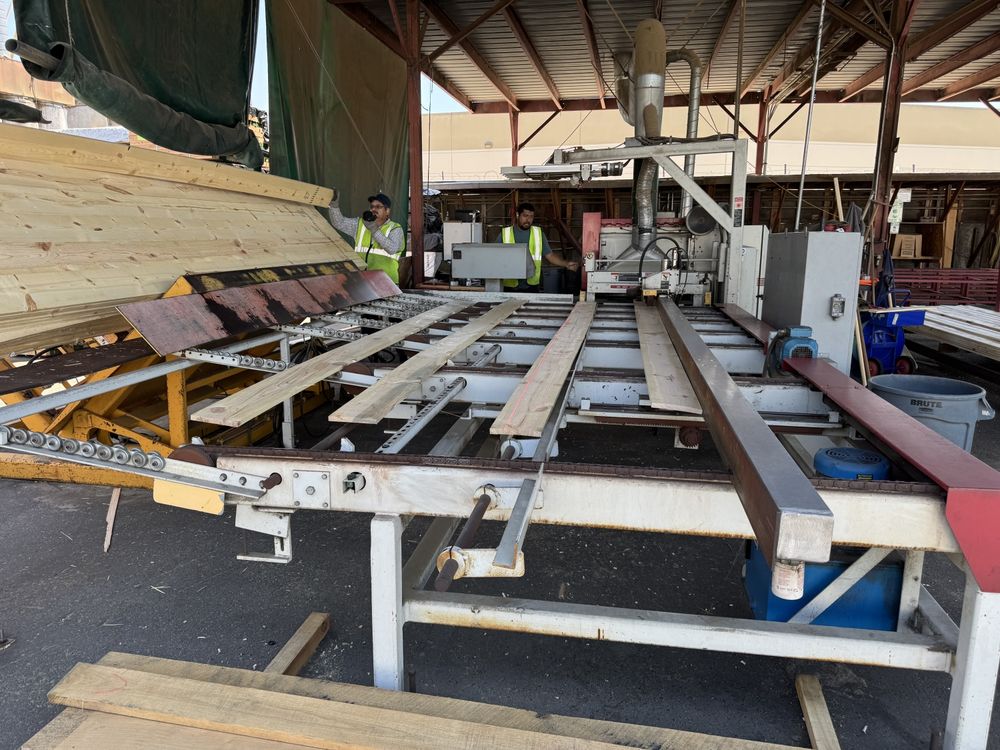

Mereen Johnson 524-DC/SR4-J Moveable Arbor Gang Rip Saw w/ Scout 16' Optimizing Infeed

75HP Arbor Motor - 3600RPM
Arbor size: 2-9/16" x 24" w/ 1/2"x1/8" Double Keyway
Cutting Thickness: 1-3/4" w/ 12" Blade, 2-3/4" w/ 14" Blade
Top/Bottom Anti-Kickback Fingers
(4) 4" Pneumatic Hold-down Rolls (#1#2,and #4 - Smooth Steel, #3 - Rubber Covered
Dust Collection: 10" Main, 5" Anti-Kickback, 5" Lower
3hp Feed Motor - 30-235 FPM

Mereen-Johnson Model PT-255-LP-SC Power Table
Infeed Nip Roll Assembly
Width Capacity: 25.50"
6" Throat Capacity
1st Upper Roll: 4" (Pneumatic) / 2nd Upper Roll: 2-1/2" (Pneumatic)
(2) 4" Bottom Rolls
Feed Speed: 30-235 FPM
3HP Hydraulic Unit

Mereen-Johnson Rip Navigator 16' Scout Deck
Min/ Max Board Length: 30" / 17'6"
12" Landing Shelf attached to 36" Arms with 1-15/16 skate Wheels
(7) Chain Beams with #60 Flat-top Roller Chains
Max Feed Speed: 111 FPM
Feed Motor: 2HP

Mereen-Johnson Model LZ-5 Servo-Laser Stand
5 Diode Lasers on Servo-Controlled Carriages
Wired for 460V 3PH
