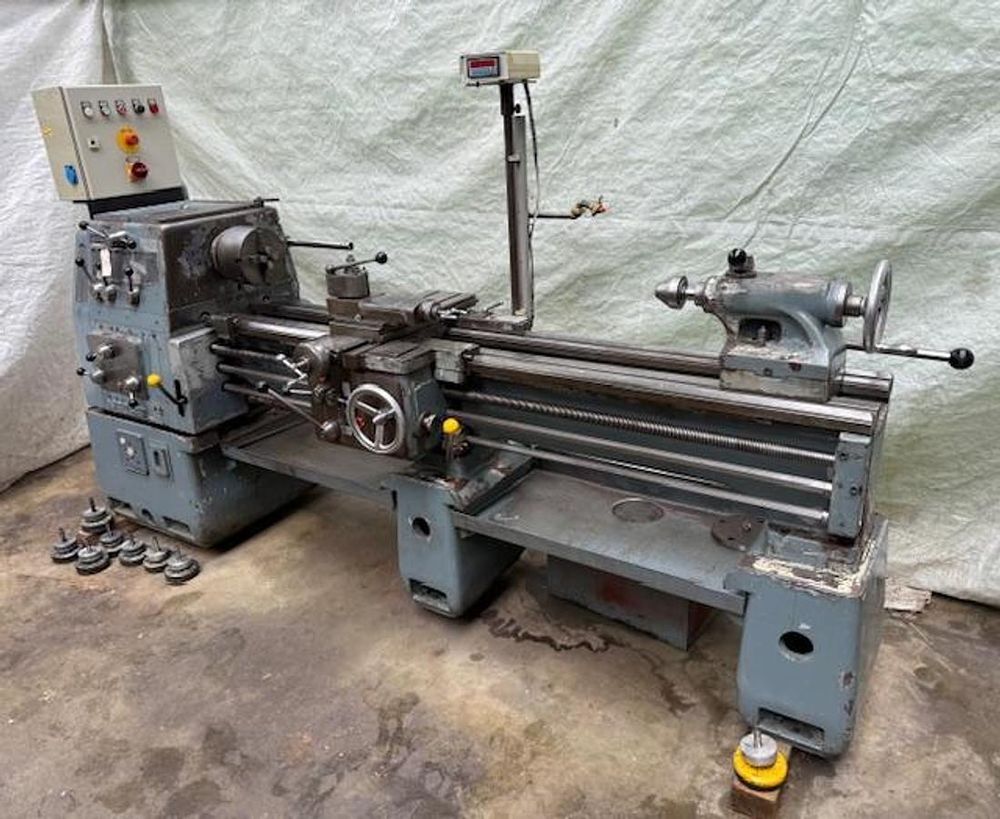

Meuser Engine Lathe 1250 rpm M 0 L - Engine Lathe

Ref : 2752271-3-MT

Condition : Used

Manufacturer : Meuser

Type : Engine Lathe

Spindle Speed : 1250 rpm

Model : M 0 L - Engine Lathe

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Center height: 205 mm
Distance between centers: 1500 mm
Swing over bed: 410 mm
Spindle bore: 47 mm
Spindle mount: Size 6
Tailstock taper: MK 4
Spindle speed range: 28–1250 rpm
Feed (longitudinal / cross): 0.03–1.3 / 0.008–0.33 mm/rev
Thread pitch range: 0.25–76 mm
Electrical connection: 380 V, 3 kW
Machine dimensions: 2800 × 1100 × 1600 mm
Machine weight: 1330 kg

Features / Equipment
Electrical installation
Digital readout for longitudinal travel
Electric brake
Four-jaw chuck
Quick-change tool post (MULTIFIX)
Coolant system
Chip tray
Chuck guard
Bed stop
Machine feet
