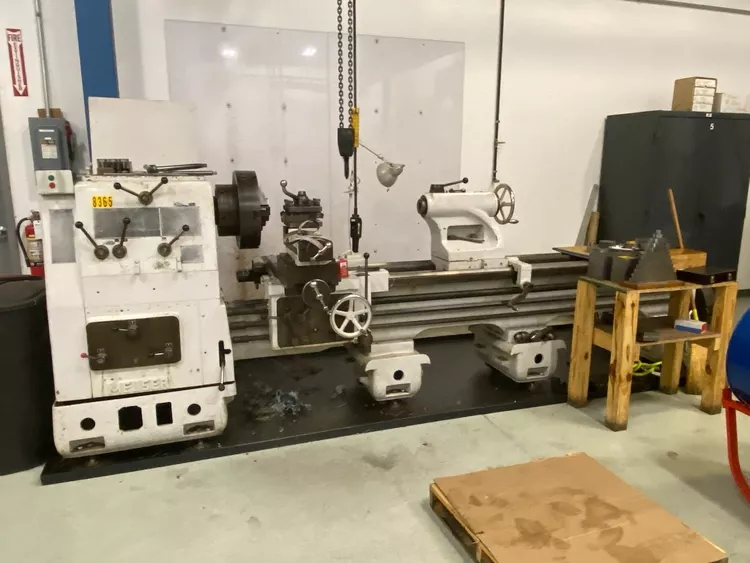

Meuser Engine Lathe 900 RPM L

swing over bed ways 32"
swing thru gap 45"
swing over cross-slide 23.75"
center distance 100"
gap length 16"
gap length front of faceplate 11"
cross-slide cross-feed travel 18.5"
top-slide cross-feed travel 8"
tailstock quill diameter 5"
tailstock spindle travel 9.5"
tailstock spindle taper #6 MT
spindle speeds 10 to 900 RPM
carriage longitudinal feeds .00138 to .31496 IPR
cross-slide cross feeds .00035 to .07874 IPR
thread changes 1/2 to 152 TPI
metric thread changes .50 to 76 mm
diametral pitch changes 1 to 176 DP
module threads .25 to 21
motor horsepower 20 HP
electrical system 220-440/3/60
machine weight 12,700 lbs
taper attachment
inch/metric full-length lead screw threading
18" 3-jaw chuck with jaws
4-way tool post
hardened & ground bed ways
power rapid traverse (inoperable)
centers with small amount of tooling
