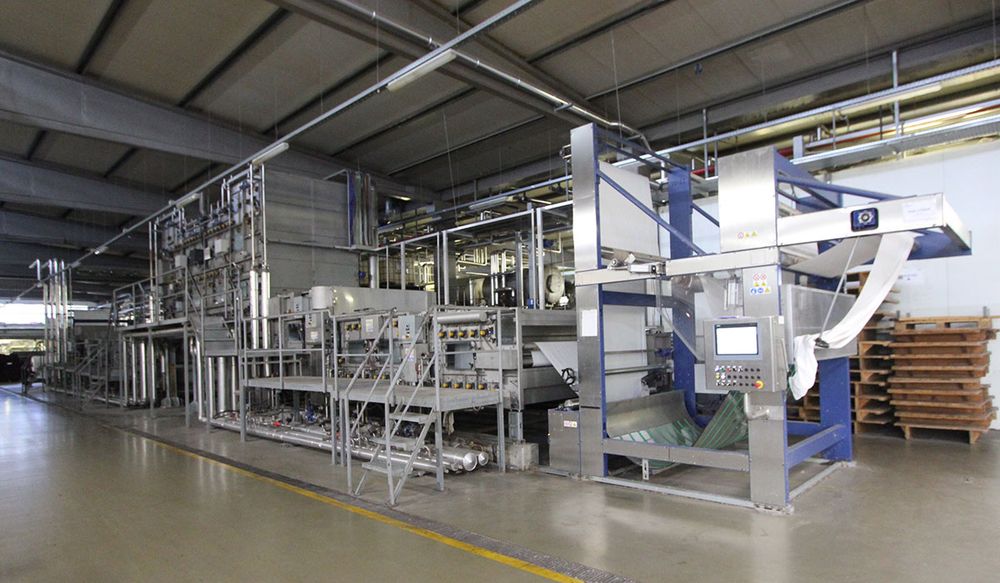

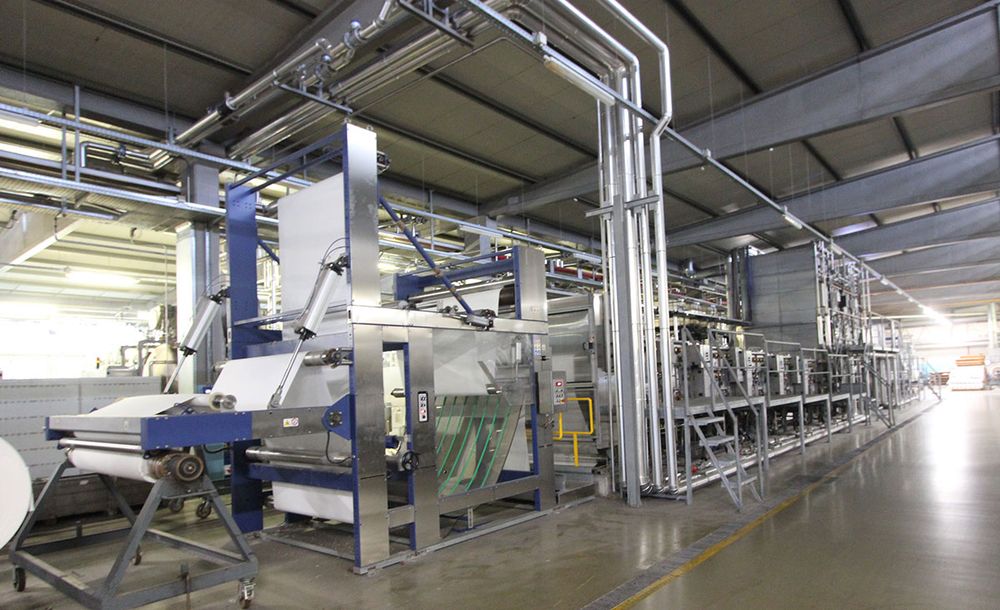

Mezzera, Reggiani Continuous bleaching and scouring

year 2020, commissioned 2021 (only 4800 working hours)
roller width 2000 mm, working width 1800 mm
minimal working width 900 mm
for cotton fabrics 80 to 250 GSM g/m2
production speed 25-60 m/min.

composed of (number visible on the drawing:
1- high entry with spreading, centering and J-Box
2- pre washing with 2 ACTIVA washing boxes
3- squeezing foulard
4- saturator to impregnate the fabric chemical products
5- steamer for reaction and development of the chemical products
6- washing with 4 ACTIVA washing boxes
7- neutralizing box,
8- ACTIVA washing box
9- squeezing foulard,
10- J-box and A-frame winding exit.
Equipped with chemical products dosing station with 5 dosing pumps.
The machine has worked very few hours and can process up to 50.000 linear meters per day
