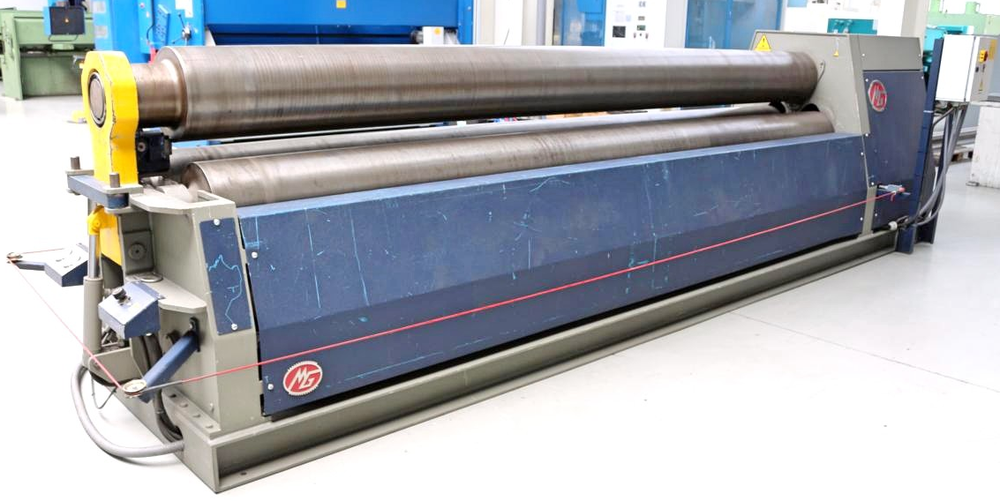

MG AK 410 C

Ref : 2749907-3-MT
Condition : Used
Manufacturer : MG
Model : AK 410 C
Year(s) : 2010
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

Sheet Width: 4100 mm
Plate Thickness: 10.0 mm ST
Pre-Bending: 8.0 mm ST
Diameter of Upper Roll: ~350 mm
Side Roll Diameter: ~300 mm
Bending Speed: 2.0 + 5.0 m/min
Oil Volume: 125 L
Voltage: 380 V
Total Power Requirement: 11.0 kW
Weight: 9150 kg
Dimensions (L×W×H): 5600 x 1700 x 1500 mm
Control Type: Conventional

Robust Electro-Hydraulic 3-Roll Bending Machine
All 3 Rolls Directly Driven via Planetary Gears
Conical Rolling by Tilting the Rolls
Parallelism of Side Rolls via Torsion Shafts
Double-Sided Bending
Forged and Hardened Rolls (53–55 HRC)
Permanent Lubrication of All Bearings
Sturdy Welded Steel Construction
Mobile Control Panel
Digital Position Indicators for Side Rolls
Control via Joysticks
Two Selectable Bending Speeds
Electro-Hydraulic Folding Bearing for Pipe Removal
Pressure Gauge for Rollers
Safety Lanyard with Switch Unit
Operating Instructions (PDF)
