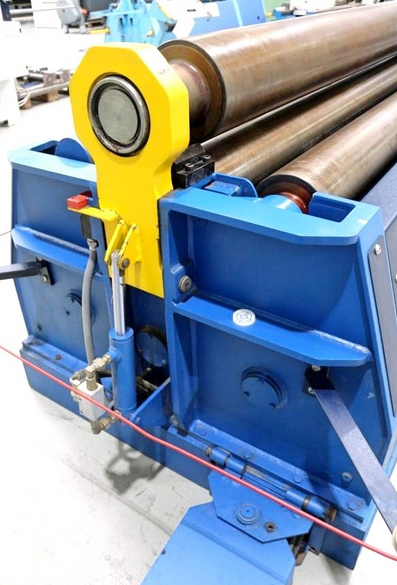

MG EH 306 A/S

Sheet width 3100 mm
Plate thickness 6.0 mm
Pre-bending capacity 4.0 mm
Upper roll diameter 200 mm
Side roll diameter 165 mm
Lower roll diameter 190 mm
Bending speed approx. 5.0 m/min
Control DIGI
Oil volume 80 L
Voltage 380 V
Total power 6.0 kW
Machine weight 6000 kg
Machine dimensions 5250 × 1500 × 1400 mm
Electro-hydraulic 4-roll bending machine
Swivel control panel
Digital position display
Joystick manual operation
Hydraulic motor driven central rolls
Conical rolling capability
Side roll parallelism via torsion shafts
Bending on both sides
Minimum diameter approx. 1.1 × upper roll diameter
Forged and hardened rolls 53–55 HRC
Permanent bearing lubrication
Electro-hydraulic folding bearing
Roller pressure gauge
Safety line with switch unit
Operating instructions PDF
