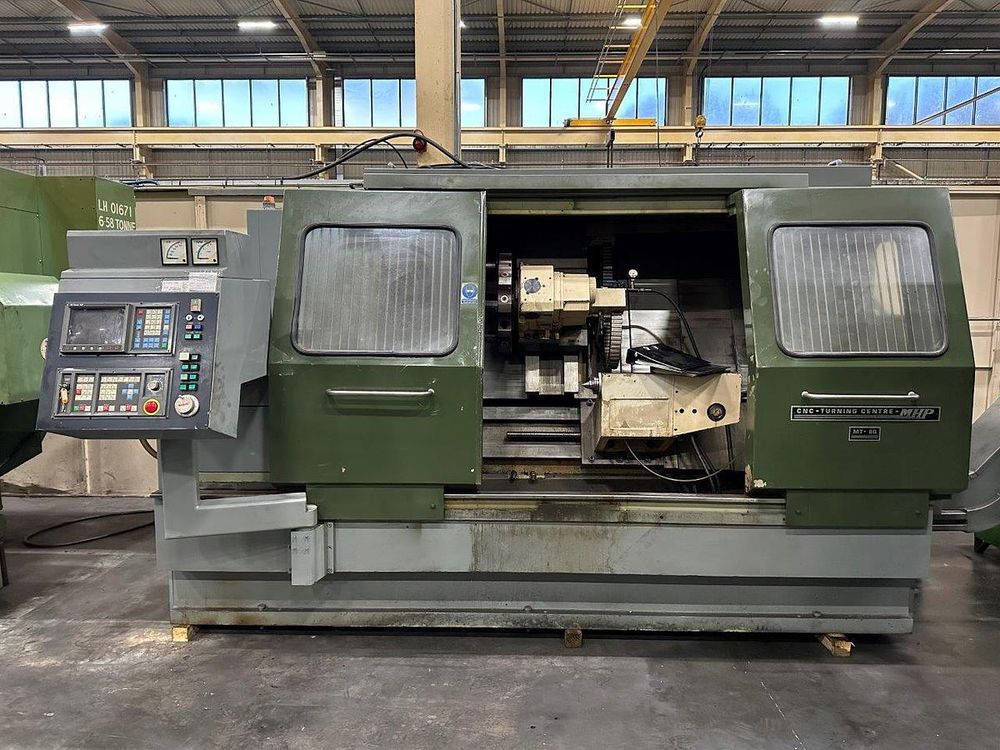

MHP Fanuc OTA CNC 350 RPM MT 80 CNC Heavy Duty Lathe 2 Axis

Ref : 2769588-3-GO

Condition : Used

Manufacturer : MHP

Controller : Fanuc OTA CNC

Spindle Speed : 350 RPM

Model : MT 80 CNC Heavy Duty Lathe

Nb Of Axis : 2 Axis

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

X-Axis Travel: 300 mm
Z-Axis Travel: 1200 mm
Chuck to Tail Stock (Effective): 1200 mm
C-Axis: No
Control: Fanuc OTA CNC
Bar Capacity: 80 mm
Swing Over Bed: 600 mm
Swing Over Cross Slide: 400 mm
Turning Diameter Between Centres (Max): 500 mm
Chuck Max Component Weight: 385 kg
Spindle Nose: A2-8
Spindle Speed Programmable: 25–350 RPM
Spindle Motor: 40 HP
Tail Stock Quill Diameter: 100 mm
Quill Taper: MT5
Bore Through Spindle: 90 mm
Chuck Size: 3-Jaw, 35 mm
Turret: Duplicate 12 Station
Swarf Conveyor: Yes
Weight: 8500 kg
