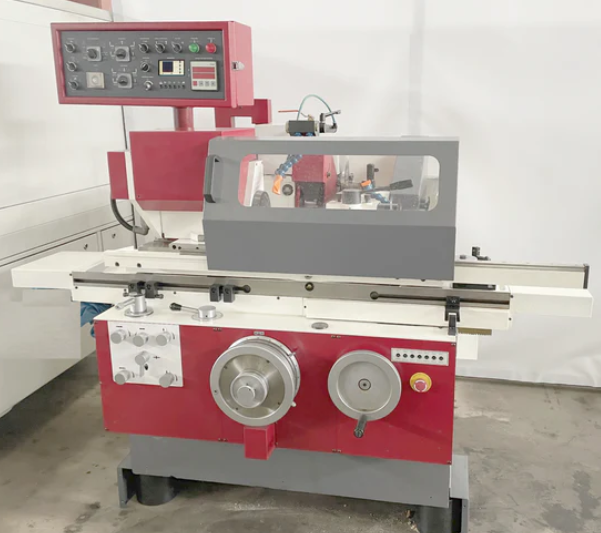

Micromatic UG 400

Centre height: 100 mm
Distance between centres: 400 mm
Max. longitudinal travel: 425 mm
Grinding wheel diameter: 350 mm
Grinding wheel width: 50 mm
Grinding wheel bore: 127 mm
Workpiece weight: 30 kg
Grinding wheel speed: 1,800–2,000 rpm
Workpiece spindle speed: 50–780 rpm
Workpiece spindle rotation: 0–90°
Collet size: 25 mm
Spindle taper: CM4
Tailstock taper: CM3
Table angular displacement: 3° / 30°
Table speed: up to 5 m/min
Grinding wheel motor: 3.7 kW
Workpiece spindle motor: 1 kW
Voltage: 3 × 400 V / 50 Hz
Machine weight: 2,200 kg
Machine dimensions: 3000 × 1750 × 1600 mm

2-axis digital readout
Internal grinding attachment
Internal grinding spindle speed: 42,000 rpm
Positionar Passiv
Redressing device
Swivel wheel dressing device
Coolant system
Set of grinding wheels
Set of driving dogs
