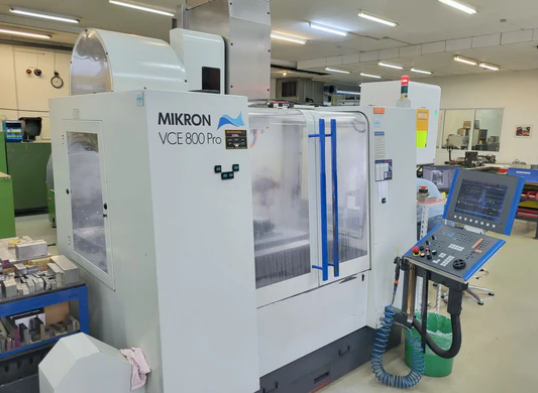

Mikron VCE 800 Pro 3 Axis

Vertical machining center
Control HEIDENHAIN TNC 426
Table length 1000 mm
Table width 560 mm
Number of T-slots 5
T-slot pitch 100 mm
T-slot width 18 mm
Table load max 1350 kg
X-axis travel 860 mm
Y-axis travel 560 mm
Z-axis travel 600 mm
Number of axes 3
Number of spindles 1
Spindle nose SK40
Spindle speeds 30–8000 t/min stepless
Spindle motor 12 kW
Spindle power 18.5/22 kW
Rapid traverse X 24 m/min
Rapid traverse Y 24 m/min
Rapid traverse Z 20 m/min
Voltage 3x400 V 50 Hz
Total power required 42 kW
Noise level 78 dB(A)
Machine weight 5000 kg
Overall dimensions 3200×2300×2800 mm
Tool changer 24 positions
Max tool diameter 77 mm
Max tool length 305 mm
Max tool weight 6 kg
Tool change time 6 s
Average chip-to-chip time 8 s
Accessories set of toolholders
Coolant system 270 l
Electronic handwheel
Lamp
Boring head
Status light
