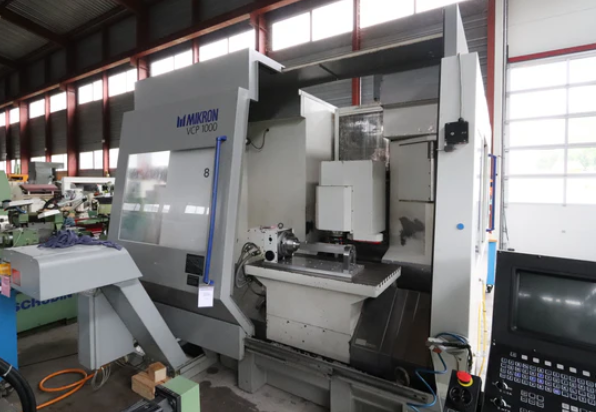

Mikron VCP 1000 4 Axis

Type: 4-Axis Machining Center
Travel X: 1,000 mm
Travel Y: 750 mm
Travel Z: 750 mm
4th axis dividing attachment
Control: Heidenhain TNC 426
Coolant through spindle
Chip conveyor
Table size: 1,150 × 700 mm
Spindle speed: 24,000 rpm
Spindle taper: HSK-A63
Distance from spindle to table: 115 mm
Feed rate: 1,500 mm/min
Rapid traverse: 22 m/min
Tool changer: TC30
Tool magazine: 30 positions
Turret stations: 60
Maximum tool diameter: 77 mm
Maximum tool diameter (adjacent pocket empty): 115 mm
Maximum tool length: 305 mm
Power: 40 kW
Power supply: 400 V, 3 Phase, 50 Hz
Machine dimensions: 5,220 × 3,100 × 2,840 mm
Machine weight: 10,500 kg
Toolholders: 45 pcs
LISTA tool cabinet
