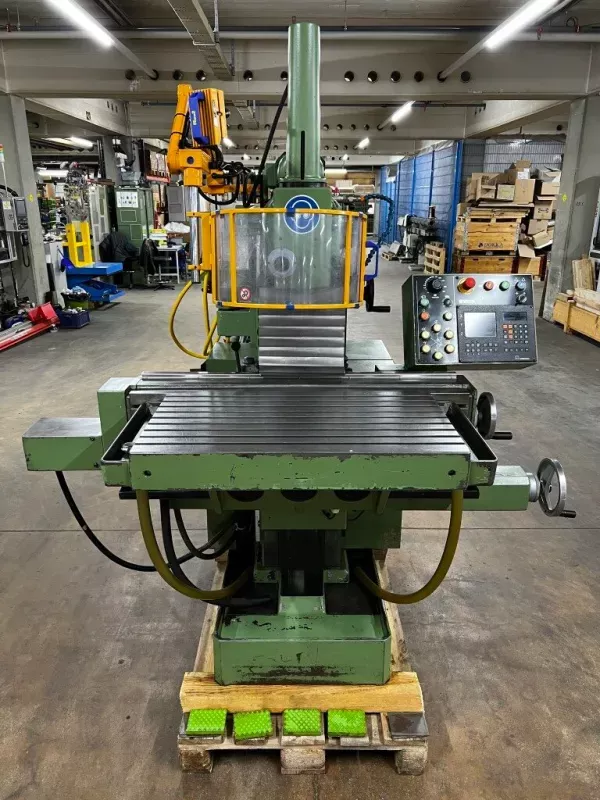

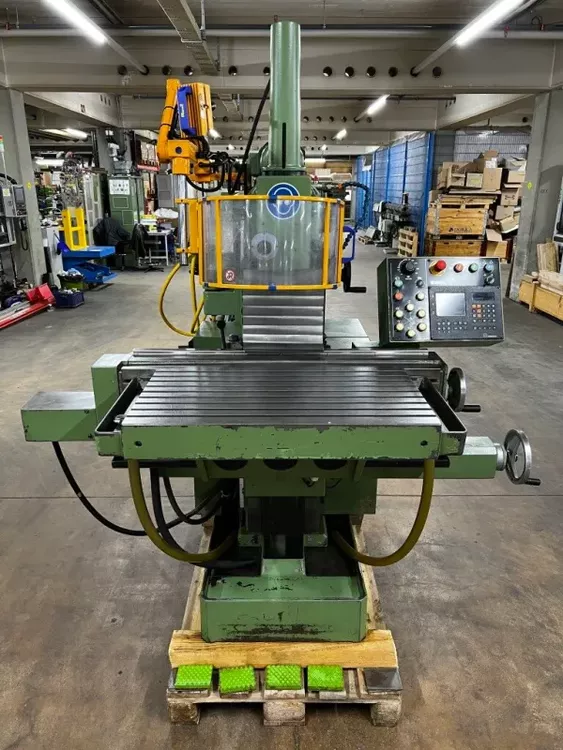

Mikron WF 3 DP universal milling machine 2500 rpm

Angle table
Clamping area: 450 x 800 mm
Number of T-slots: 9
T-slot spacing: 45 mm
Weight: 144 kg
Machine dimensions: 1475 x 1770 x 2000 mm
Weight: 1800 kg
Connected load: 8.7 kW

Milling spindle drive
Spindle speed: 21 steps
Speed range: 25 – 2500 rpm
Step increment: 1.258
Spindle motor power: 3.3 / 4.0 kW
Tool holder: ISO 40 / M16
Spindle movement (vertical): 110 mm

Feed drive
Feeds in all 3 axes: Continuously adjustable
Feed range: 1 – 2000 mm/min
Rapid traverse (all directions): 3000 mm/min

Torque on motor
Longitudinal + transverse: 4 Nm
Vertical: 8 Nm

Travel paths
X-axis: 400 mm (automatic)
Y-axis: 400 mm (automatic)
Z-axis: 385 mm (automatic)
