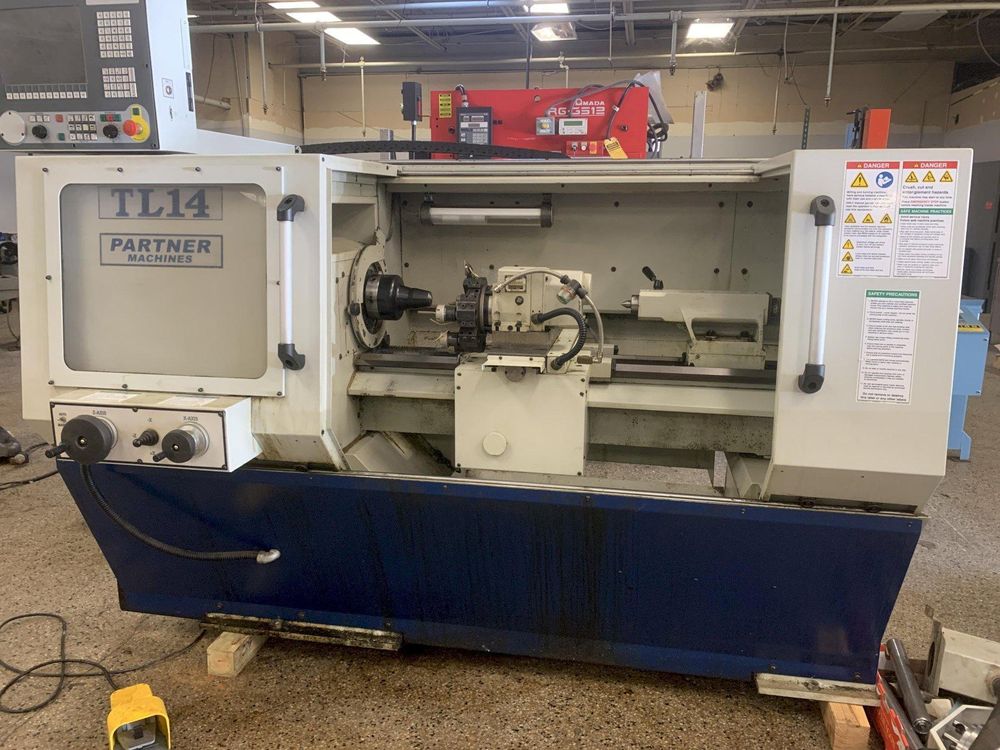

Milltronics Milltronics 7200 CNC Conversational Control 3000 rpm TL14 2 Axis

X-axis travel: 7 in
Z-axis travel: 30.5 in
Rapid traverse: 300 ipm
Feed rate range: 0.1 - 100 ipm
Control: Milltronics 7200 CNC Conversational Control
8-station automatic turret
Air operated 5C collet closer
Foot pedal
Dual electronic hand wheels
Full enclosure with sliding doors
Automatic metered lubrication
Tailstock
Work light
Swing over bed: 14 in
Swing over cross slide: 7.8 in
Bed length: 40 in
Center height: 7 in
Center distance: 36 in
Bed width: 9.8 in
Spindle bore: 1.65 in
Spindle nose: Camlock D1-5
Spindle taper: #4MT
Spindle speed: 100 - 3000 rpm
Main motor power: 12 / 10 hp
Chuck size: 6 in
6 in 3-jaw chuck
Tailstock quill travel: 5.5 in
Tailstock quill diameter: 1.875 in
Tailstock quill taper: #3MT
Weight: 4000 lb
