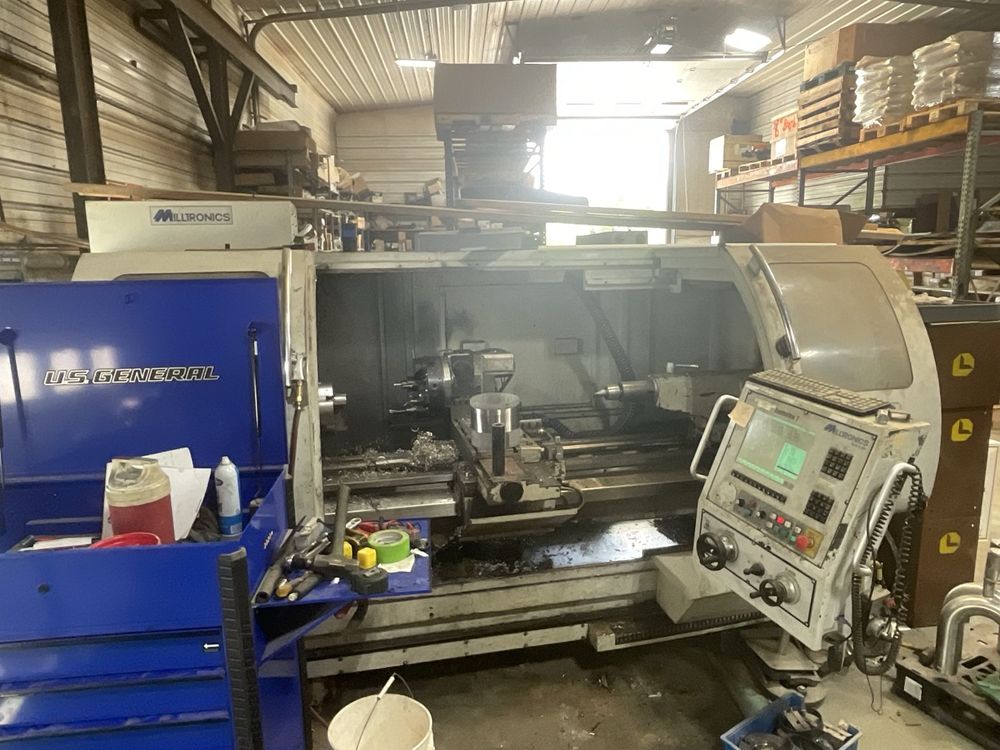

Milltronics Milltronics Centurion 7 Control 2000 RPM ML-22 2 Axis

MILLTRONICS ML-22
2006

Swing over bed: 23″
Swing over cross slide: 12.1″
Swing over gap: 30.3″
Gap distance: 12.75″
Distance between centers: 60″
X-axis travel: 13″
Z-axis travel: 63.5″
Spindle bore: 3.22″
Spindle nose: A1-8
Spindle speed range: 2,000 RPM
Spindle motor: 24/15 HP
Turret: 8-station
Tailstock quill diameter: 3.94″
Tailstock quill travel: 6″
Tailstock quill taper: MT5
Rapid traverse rate X/Z: 500 IPM
Maximum cutting feed rate: 100 IPM
Positioning accuracy: ±0.00025″
Repeatability: ±0.0002″
Machine dimensions: 143″ × 83″ × 83″
Machine weight: 10,000 lbs

Milltronics Centurion 7 Control
