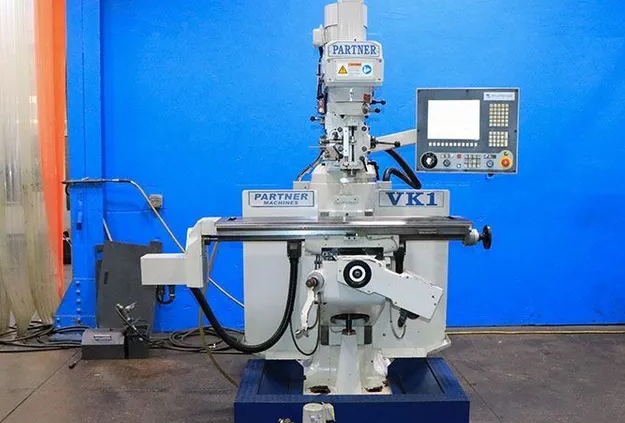

Milltronics VK-1 Vertical 4000 RPM

Table size 9" x 49"
X-axis travel 30"
Y-axis (saddle) travel 11"
Quill travel 5"
Knee travel 16"
Ram travel 12"
Spindle taper R8
Spindle speed low range 60–500 RPM
Spindle speed high range 500–4000 RPM
Spindle diameter 3.375"
Head swivel side to side ±90°
Head tilt front to back ±45°
Control 2-axis CNC MILLTRONICS Centurion 7200 SLS
LCD display 10"
Ball screws and AC servo motors for X & Y travels
Ground solid ways with Turcite surfaces
Lubrication system
Flood coolant system
Motor 5 HP with vector spindle drive
Approximate dimensions 80"L x 70"W x 82"H
Approximate weight 3,000 lbs
