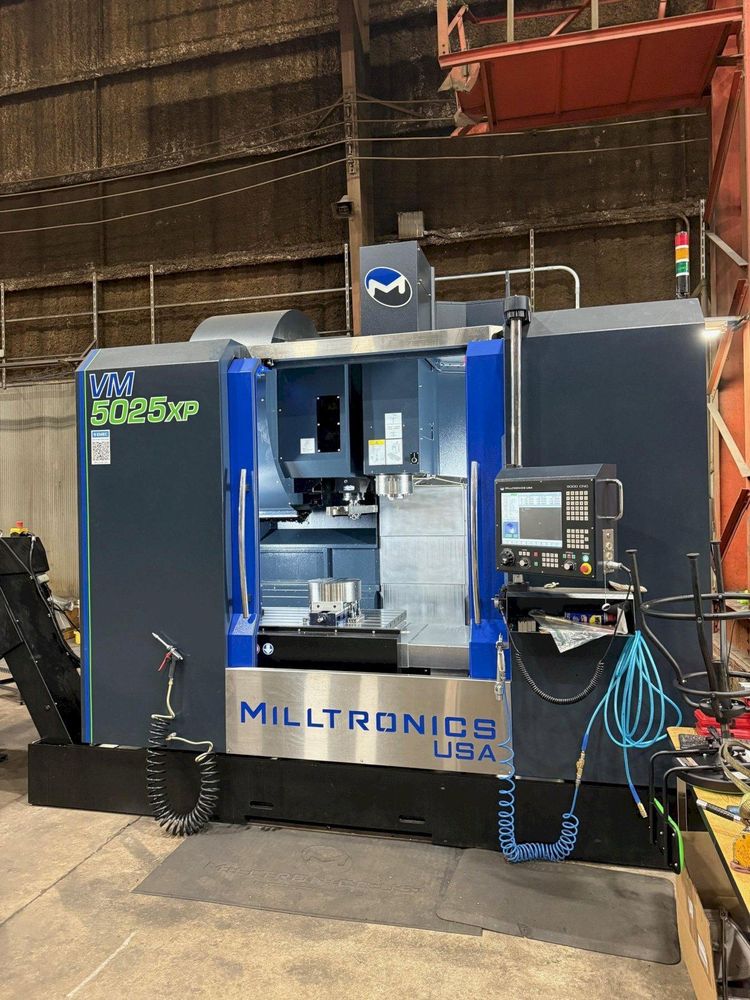

Milltronics VM5025XP 3 Axis

X-Axis Travel 50"
Y-Axis Travel 25"
Z-Axis Travel 24"
Table Size 54" x 25"
Allowable Table Load 4190 lbs
T-Slot 0.71" on 3.94" centers (6 total)
Spindle Gage Line to Table Distance 6" to 30"
Way Cover to Spindle Center 28.7"
Spindle Taper ISO No. 50 (Supports BIG-PLUS Tools)
Spindle Speed 8000 RPM
AC Spindle Motor 35/25 HP
ATC Type Double Arm
Number of Tools 30
Tool Shank CT50
Max Tool Diameter / Adjacent Location Empty 4.9" / 8.7"
Max Tool Length 11.8"
Max Tool Weight 33 lbs
X/Y/Z Axis Rapid Traverse Rate 1000 / 787 IPM
Max Cutting Feed Rate 500 IPM
Least Command Increment 0.0001"
X-Axis Thrust (Peak) 6065 lbs
Y-Axis Thrust (Peak) 6065 lbs
Z-Axis Thrust (Peak) 9531 lbs
Machine Height 123"
Floor Space Required 128" x 108"
Additional Width for Conveyor Discharge 37"
Machine Weight 29,100 lbs
Power Required 38 kVA / 94 A @ 230V
Voltage Required 208-240 V / 3 Phase
9000 Control with DGI 10 Software
15" color LCD Touch Screen Display
30 Pocket Double Arm ATC
8000 RPM Belt-Driven Spindle
Chip Conveyor
Chip Wash Down
Full Enclosure with Side Doors
Rigid Tapping
Spare "M" Function
Solid Model Graphic Display
120 GB Solid State Hard Drive
DXF File Import
Rest Roughing Machining Cycle
Approx. 1000 operating hours
Includes 1 year parts and labor warranty
Includes $5000 Ingersoll Cutting Tools Certificate
Includes 25% discount on all accessories and options
