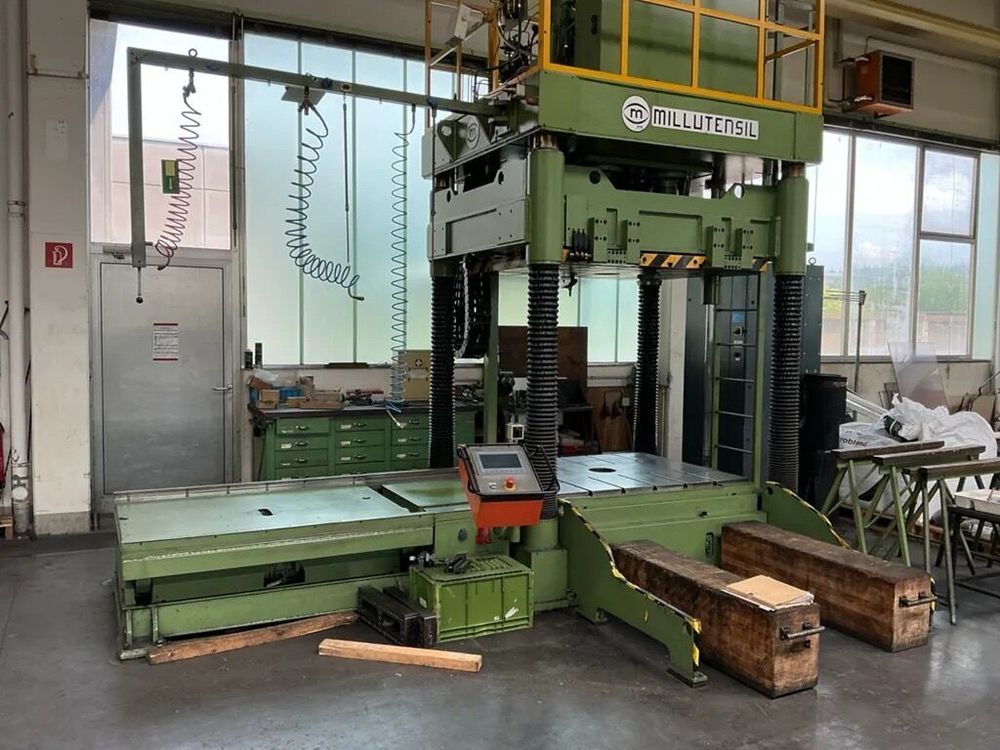

Millutensil MIL 163 1500 kN

Max. closing force: 1500 kN
Max. opening force: 200 kN
Table size: 1600x1300 mm
Distance between columns: 1870 mm
Max. distance between tables: 1400 mm
Min. distance between tables: 400 mm
Max. weight on lower table: 16000 kg
Max. weight on upper table: 10000 kg
Lower table tilting: 70°
Upper table tilting: 155°
CNC: Siemens SIMATIC HMI Touch
Approach speed: 5 m/min
Working speed: 0.5 m/min
Return speed: 3 m/min
Machine dimensions (LxWxH): 2230x3400x2600 mm
