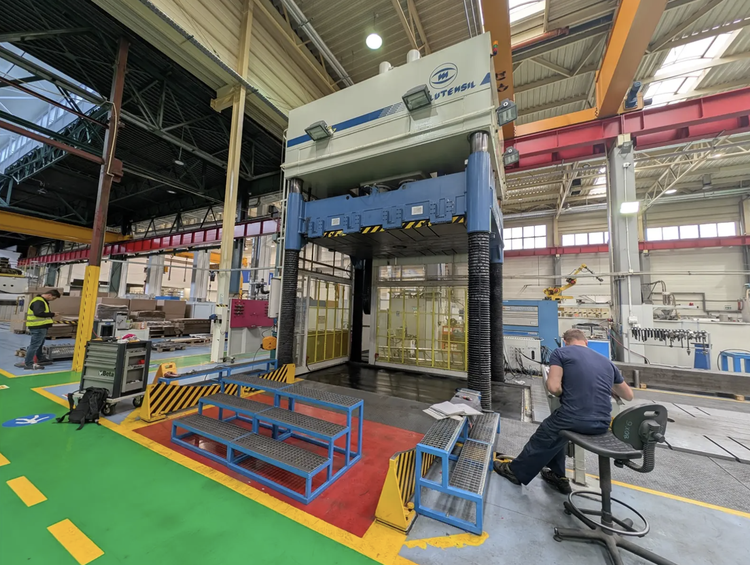

Millutensil MIL307 4000 kN

Closing force 4000 kN
Opening force 1000 kN
Table size 3500 × 2500 mm
Distance between columns 3700 × 2650 mm
Max distance between tables 3000 mm
Min distance between tables 400 mm
Max load lower table 80,000 kg
Max load upper table 40,000 kg
Upper table tilting 180°
Control Siemens Simatic OP7
Approach speed 65–80 mm/sec
Working speed 8 mm/sec
Return speed 35–50 mm/sec
Installed power 45 kW
Machine weight 135,000 kg
Machine dimensions 9600 × 5950 × 6900 mm (above ground)
Auxiliary hydraulic cylinder unit 4+4
