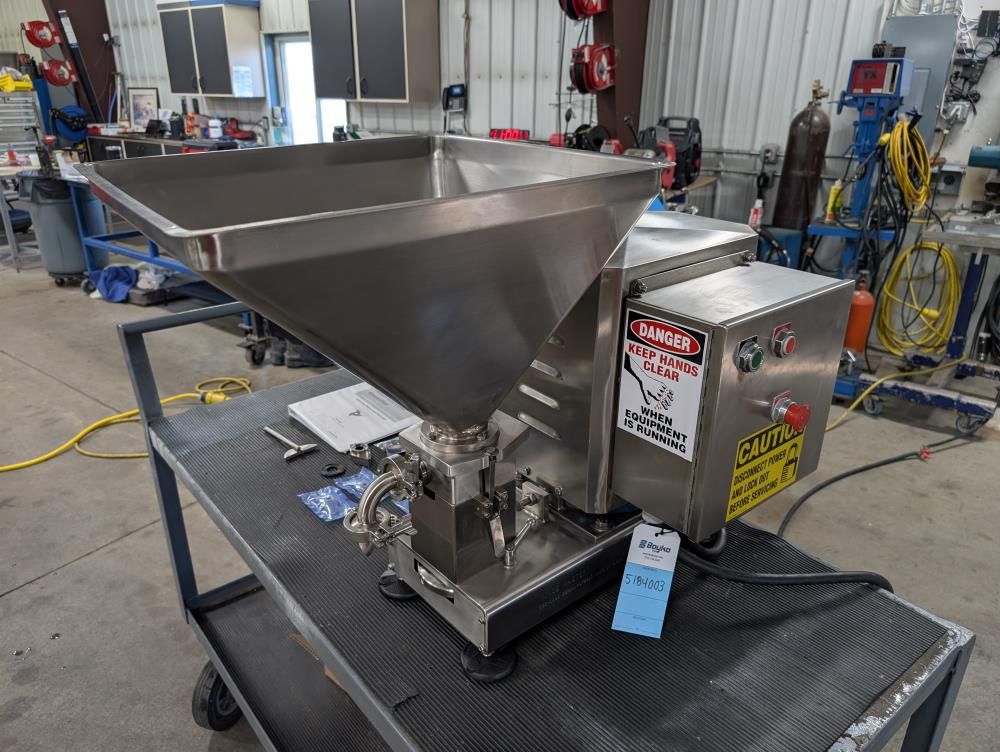

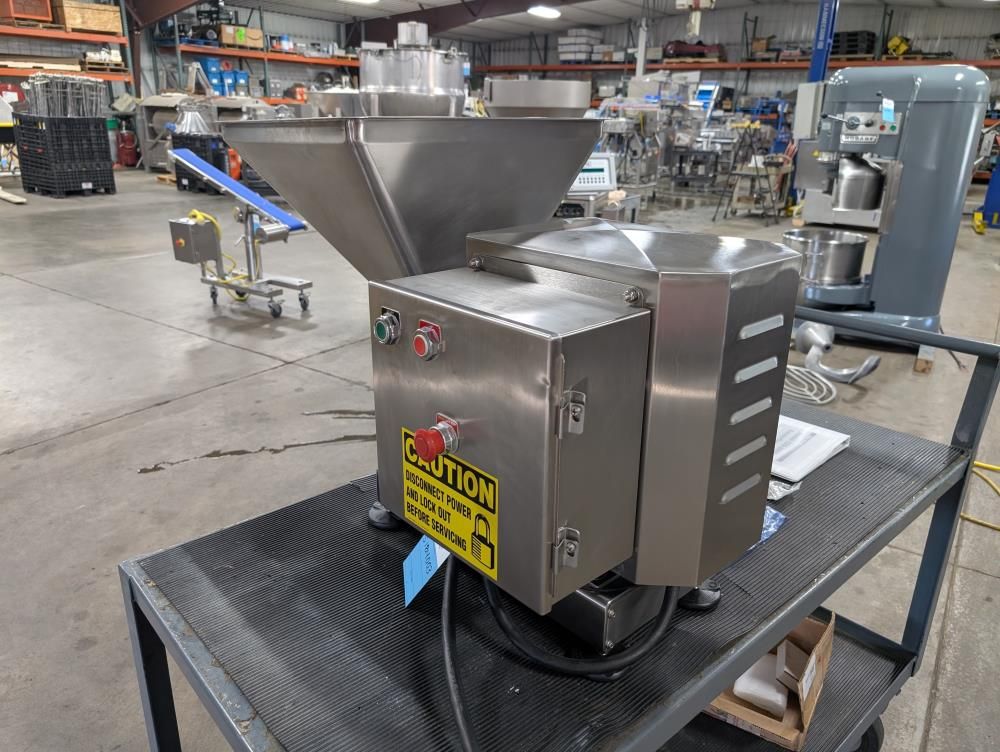

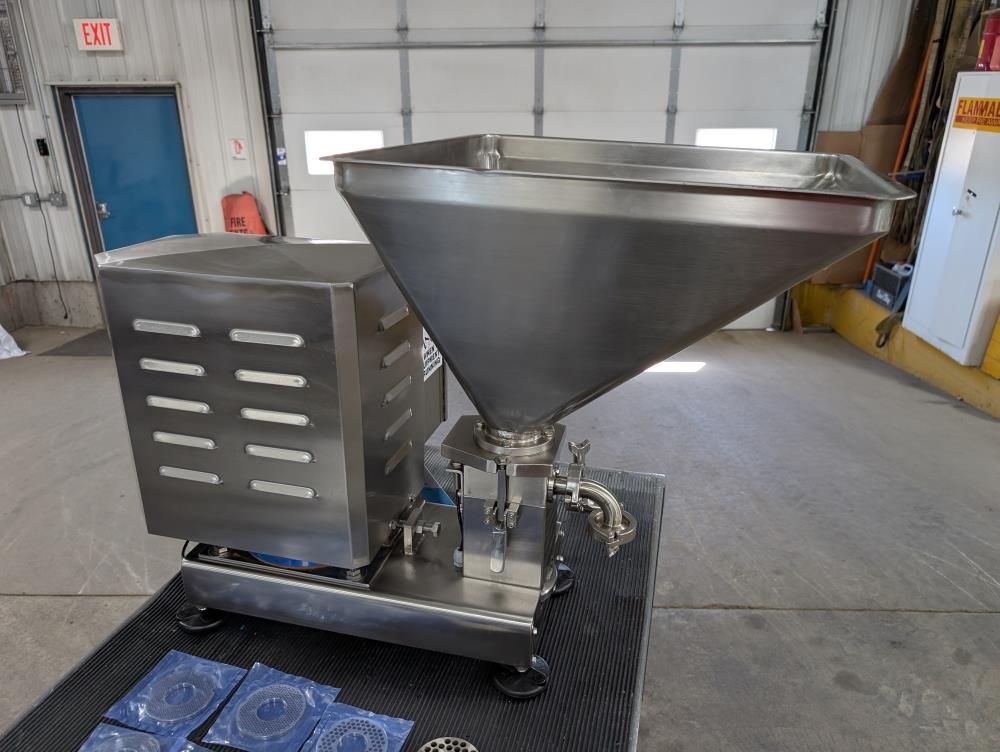

Mince Master 535-1000 Single Plate Vertical Emulsifier

Motor & Drive
Motor: 5 HP

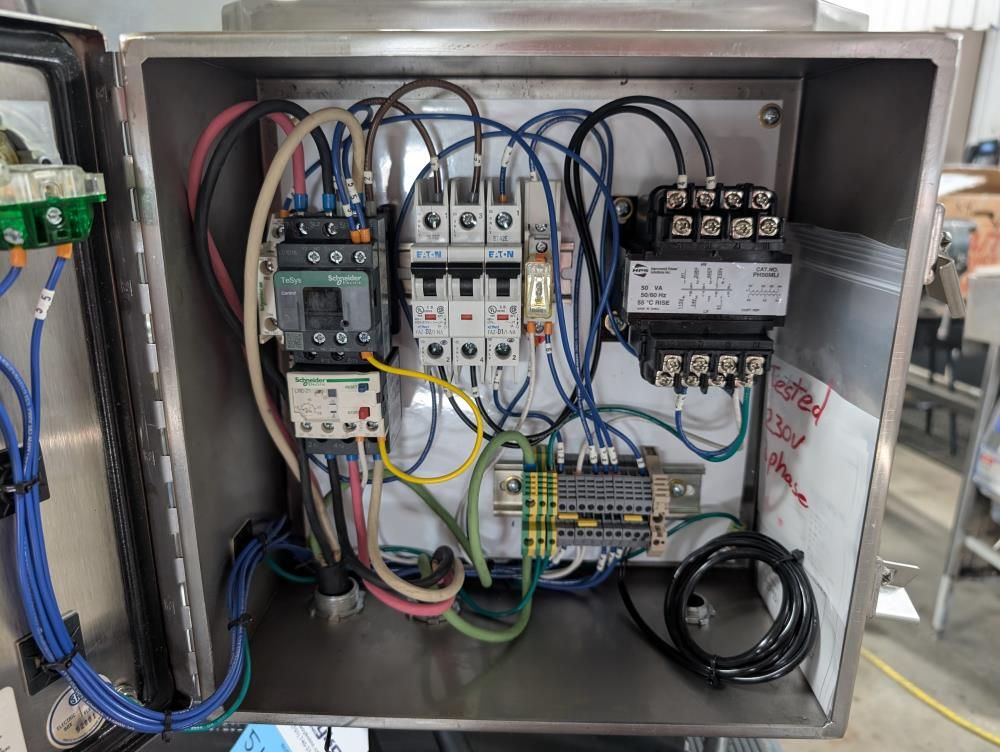

Voltage: 230/460 VAC, 3 Phase, 60 Hz
Motor speed: 3600 RPM
Cutting shaft speed: 5710 RPM

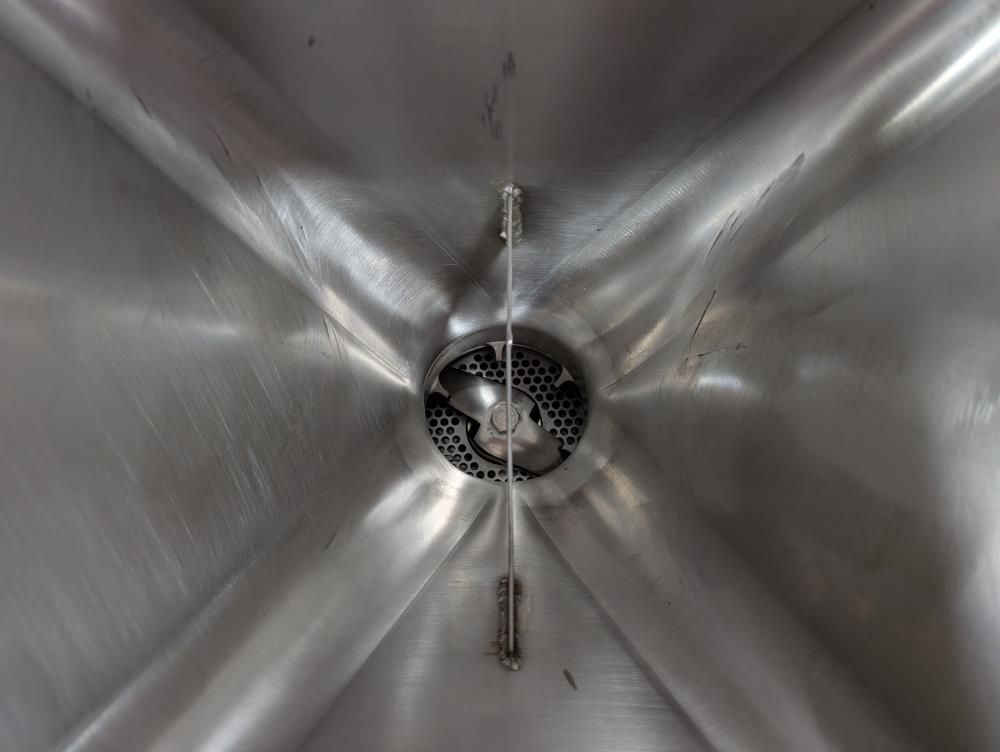

Hopper & Infeed

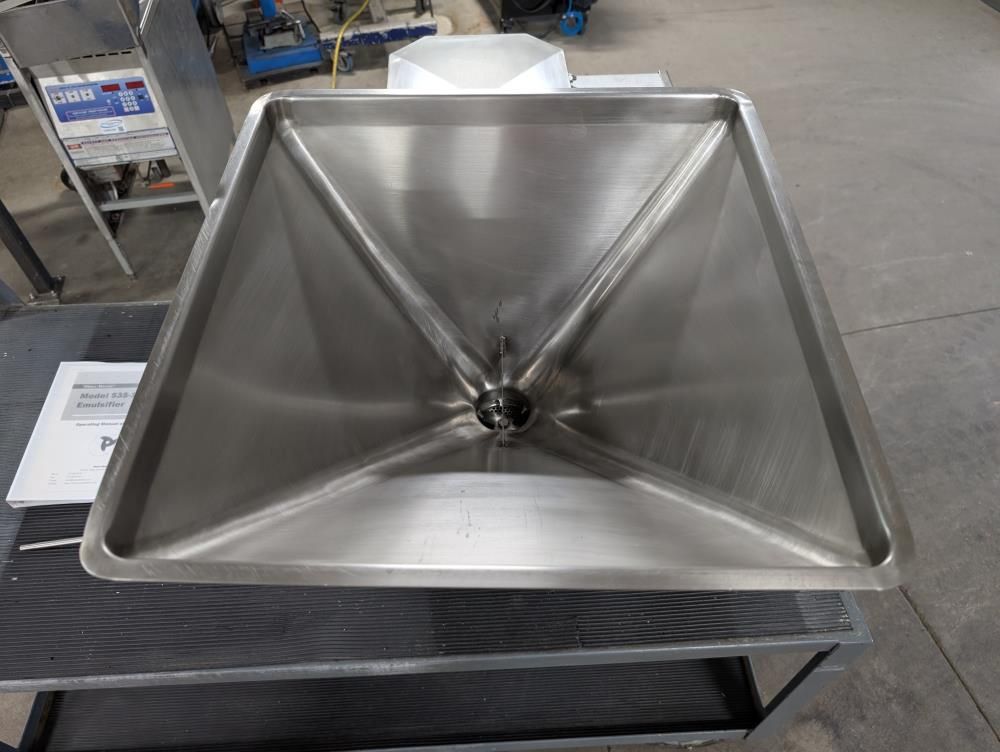

Stainless steel hopper
Capacity: 50 lbs (22.7 kg)
Dimensions: 19 in. L x 18 in. W x 16 in. H
Infeed height: 27 inches

Cutting Plate & Spare Parts

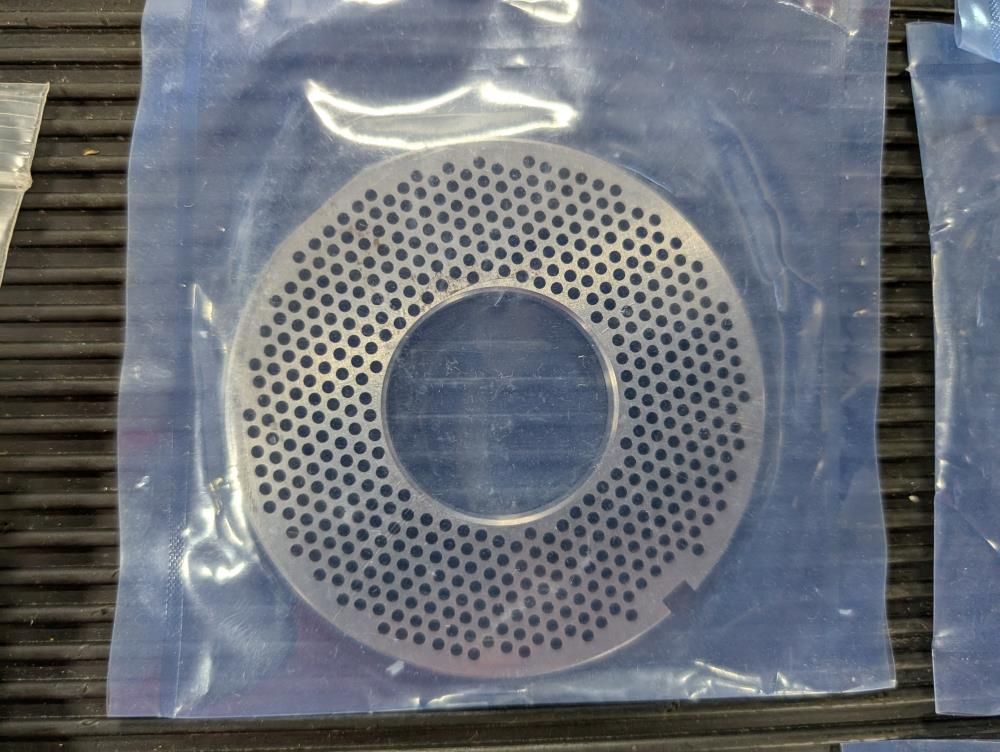

Plate size: 3 3/8 inches (86 mm)
Plate hole size options: 1.4 mm to 4.0 mm

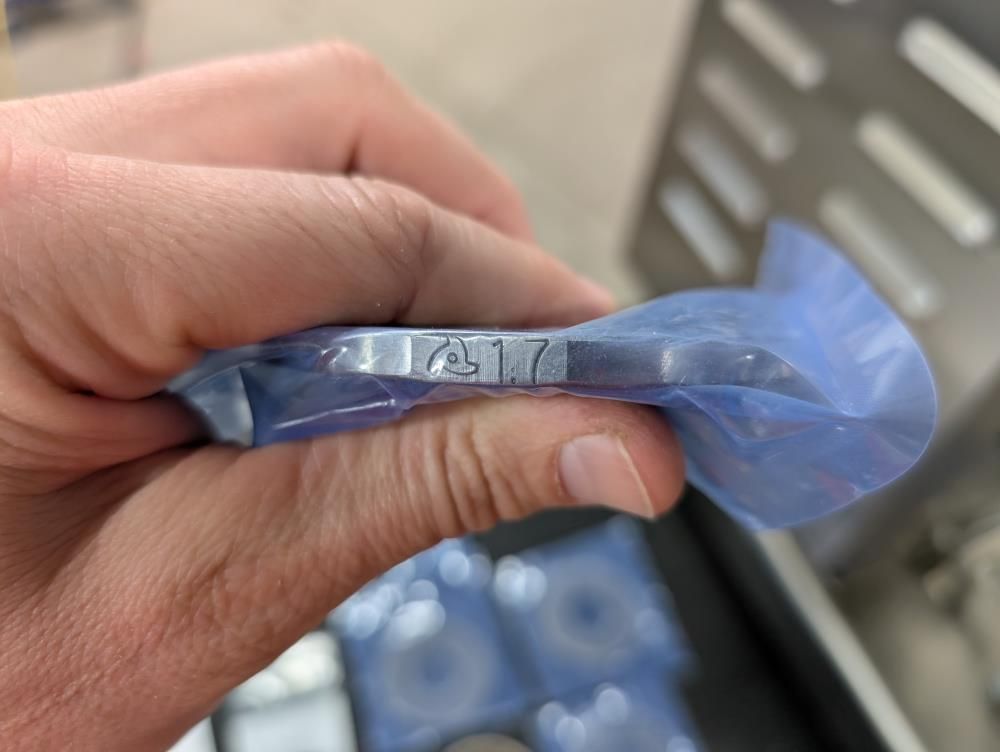

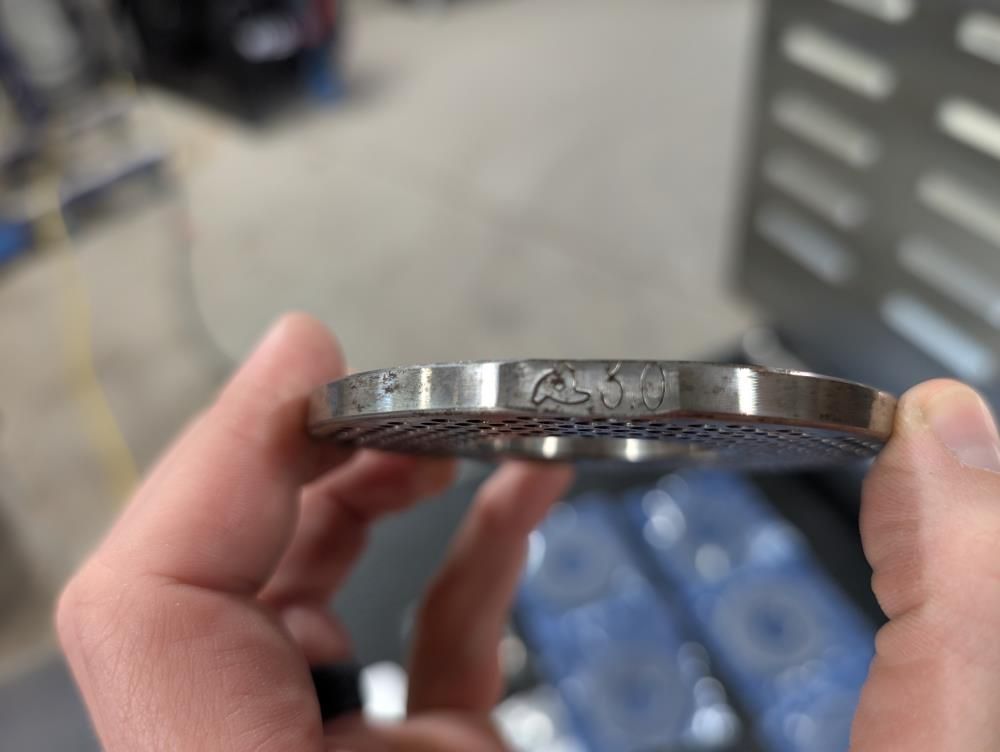

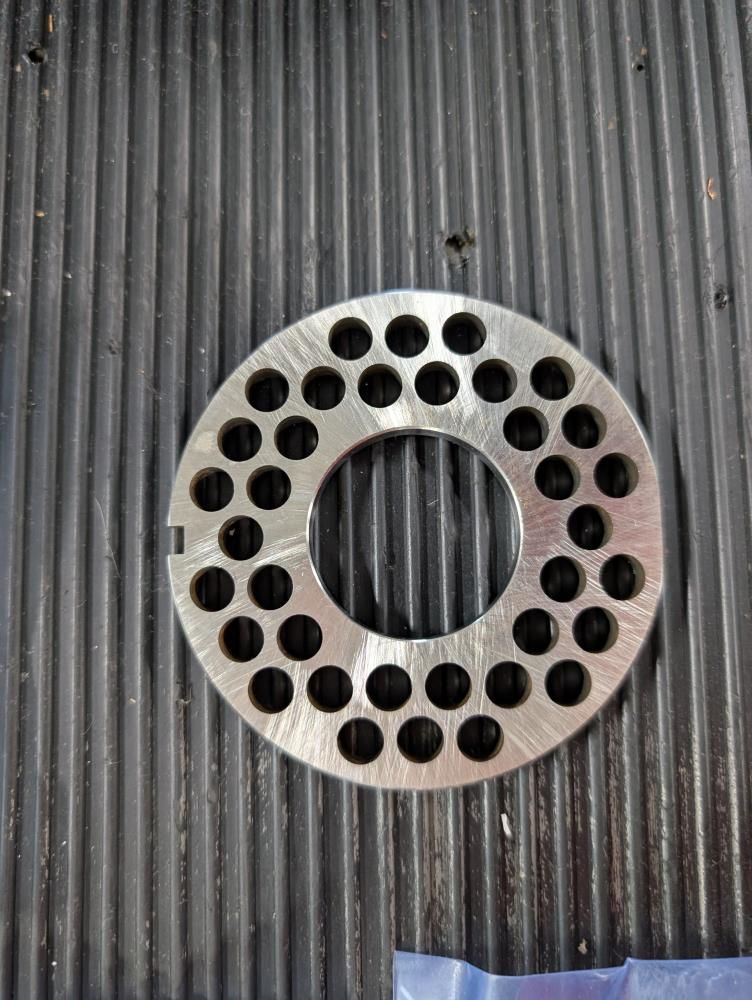

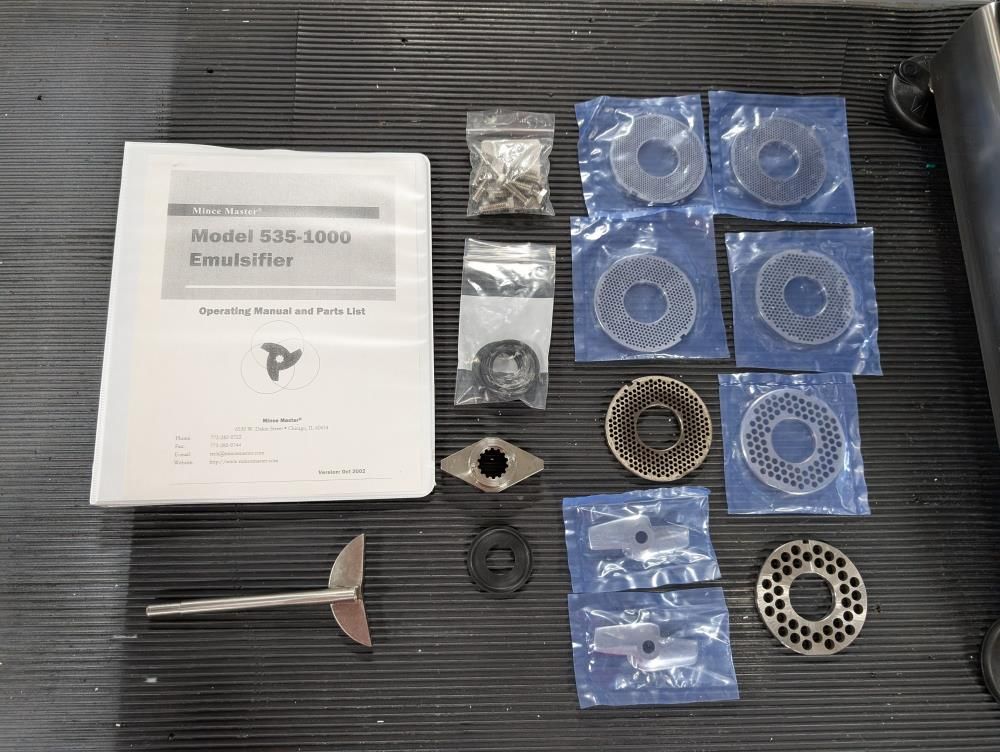

Spare Plates Included:
Used: 3.0 mm, 4.0 mm, 8.0 mm
New: 1.4 mm, 1.7 mm, 2.0 mm, 2.5 mm
Spare Knives Included:
(2) new knives
(1) used knife

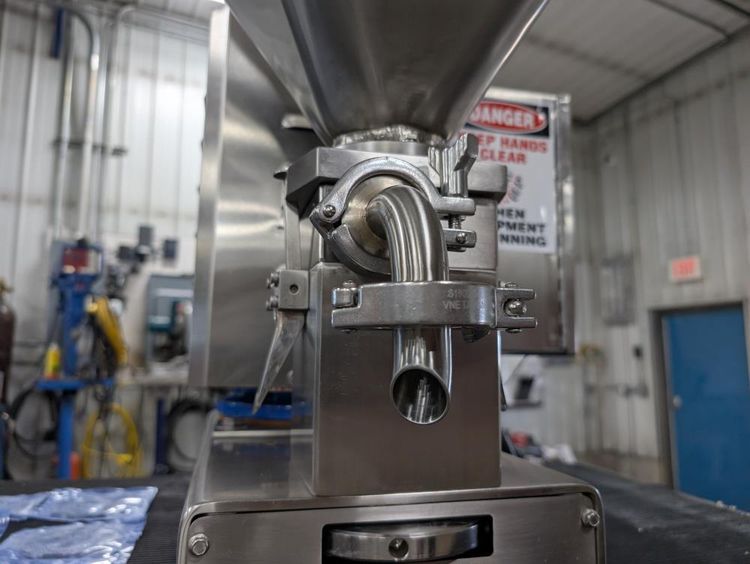

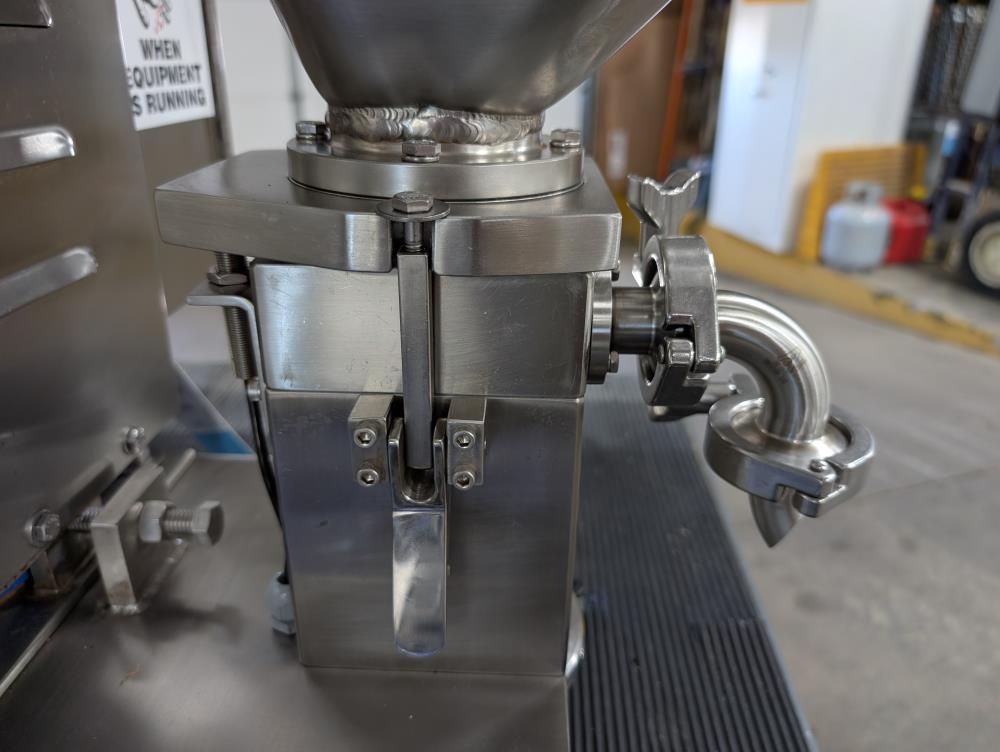

Discharge

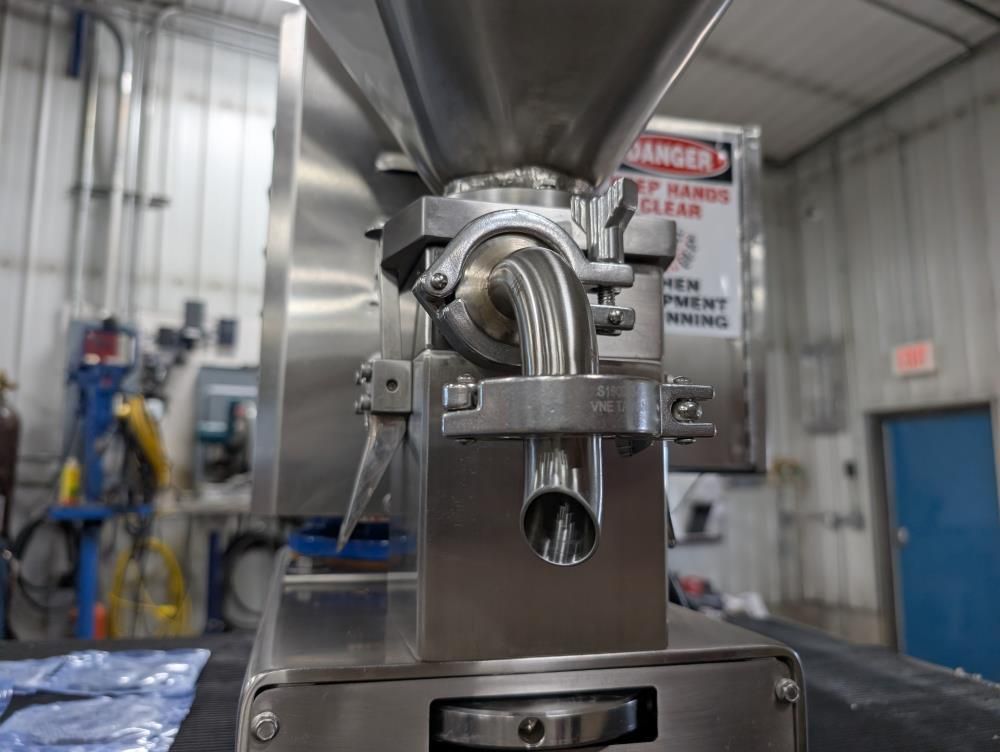

1-inch diameter sanitary clamp fitting

Performance
Production capacity: 30–45 lbs/min (based on typical wiener or bologna formula using 1.7 mm plate)

Construction
All stainless steel frame
Adjustable legs for height customization

Overall Dimensions & Weight
36 inches long x 24 inches wide x 27 inches tall
Approximate weight: 190 lbs (86 kg)
