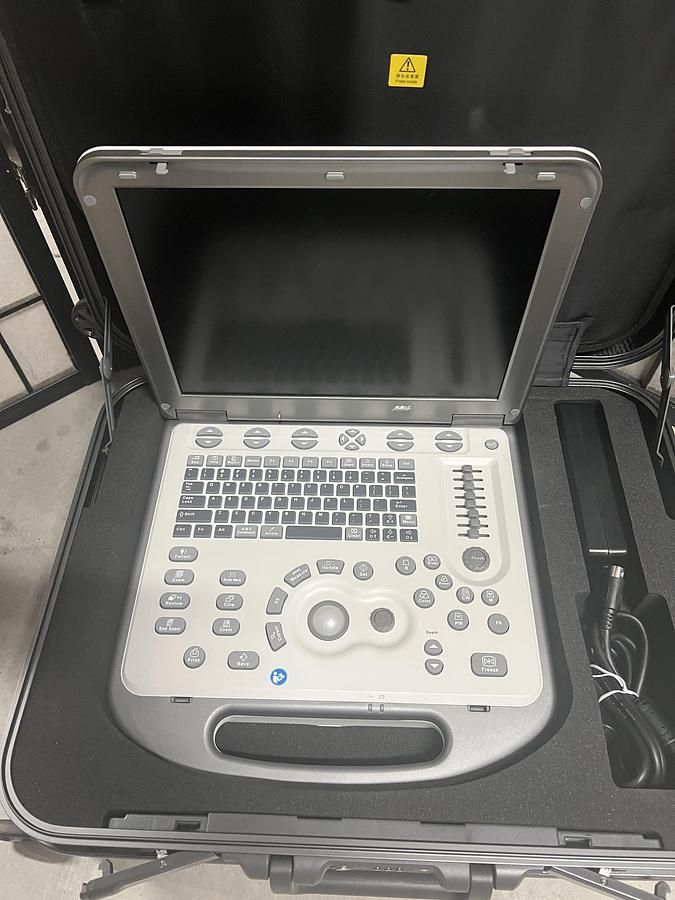

Mindray M6 Ultrasound System

The Mindray M6 is a lightweight, laptop-style portable ultrasound system
featuring a 15" HD screen, robust anti-splash design, and a 1TB drive,
offering advanced imaging (4D, Contrast, THI)
with automated tools (Auto LV, Auto PW, iTouch)
for various applications (cardiac, vascular, OB/GYN, vet),
connectivity (DICOM, WiFi, MedSight app) for mobility,
and long battery life, balancing size with high-end diagnostic power for bedside use.

Specifications:
Display: 15-inch high-resolution (1024x768) LCD monitor.
Design: Lightweight (around 5.5 kg), laptop-style
with anti-shock/splash housing, suitable for cart use.
Storage: Integrated 1TB hard drive, network storage, iStorage.
Battery: Built-in, up to 1.5 hours of scan time.
Image Quality: iClearTM (speckle reduction), iBeamTM (spatial compounding),
THI, UWN Contrast Imaging, Multi-beam formation.
Doppler: PW, CW, HR Flow, Smart Doppler, Smart Track.
Automation: Auto LV, Auto PW Trace, iTouch (one-key optimization), Auto IMT.
Connectivity: DICOM, Ethernet, USB, Wireless LAN, MedSight mobile app, VGA.
Probes: Wide range including linear, convex, 4D volume, bi-plane (optional).
Applications: General Imaging, Cardiovascular, OB/GYN, Urology (with biplane), Veterinary.
Accessories Included: AC adapter, Li-ion batteries, Traveling case, iScanHelper

Transducers Included:
C5-2s: 2.0-6.0 MHz Convex Array Transducer with 50 mm Aperature
P4-2s: 2.0-4.0 MHz Phased Array Transducer with 23mm footprint
74Ls: 4.0 to 10.0 MHz Linear Array Transducer with 38 mm Aperature
V10-4s: 4-10 MHz Endocavitary Probe with 150 degree Field of View
4CD4s: 2-6 MHz 3D/4D Convex Probe 40mm

DOM/Year 2023-05-29
