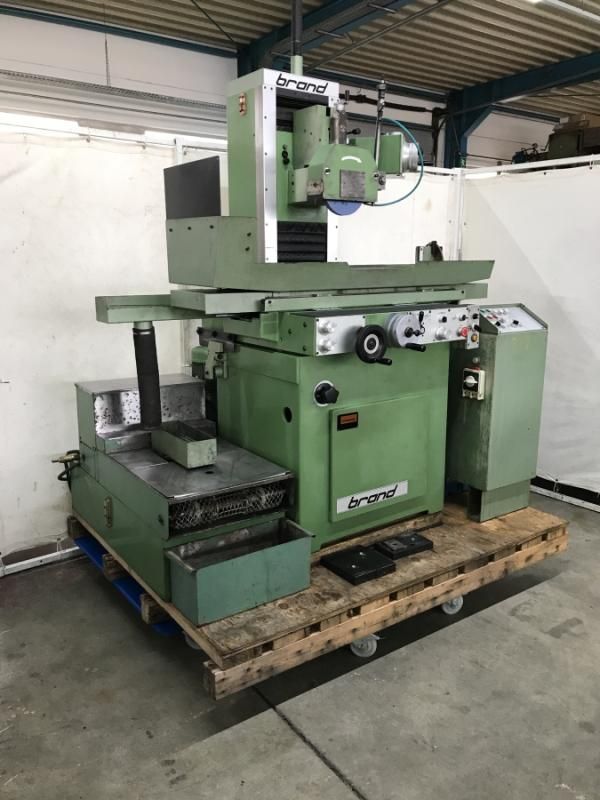

Mini 500

Magnetic chuck size 450 × 200 mm
Grinding length 500 mm
Grinding width 240 mm
Cross travel 220 mm
Table longitudinal travel 550 mm
Distance spindle center to magnet max. 350 mm
Grinding wheel diameter 225 mm
Grinding wheel width max. 25 mm
Grinding wheel bore 50.8 mm
Table longitudinal feed 0.5–24 m/min stepless
Table crossfeed impulse 0.05–30 mm
Cross rapid traverse 10–1000 mm/min
Vertical infeed 0.001–0.05 mm
Vertical rapid traverse 600 mm/min
Grinding wheel speed 2820 rpm
Grinding wheel surface speed 33 m/s
Grinding spindle motor power 2.2 kW
Hydraulic motor power 1.1 kW
Power connection 400 V, 50 Hz, 9.5 kVA
Machine dimensions (L×W×H) 2000 × 1400 × 2250 mm
Machine weight approx. 1600 kg

Equipped With
Automatic depth and vertical feed
Mechanical handwheels for axis movements
Hydraulic table longitudinal movement
WAGNER electromagnetic chuck 450 × 200 mm (height 73 mm)
Central lubrication
Belt filter system with coolant tank and pump 1300 × 500 × 650 mm
Two additional wheel holders for 50.8 mm bore grinding wheels
Balancing arbor and wheel dresser
Separate hydraulic unit 700 × 300 × 750 mm
Good condition
