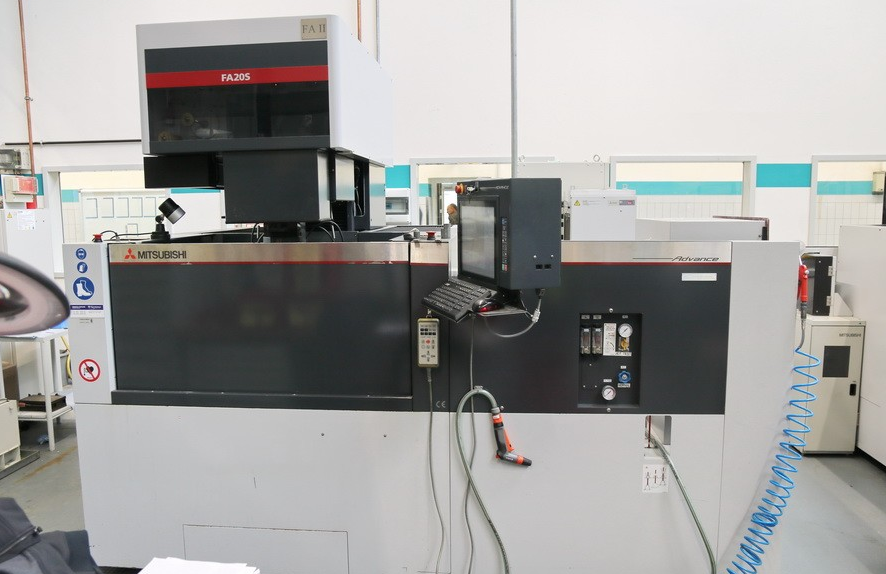

Mitsubishi FA 20 S Advance -2

X-axis travel 500 mm
Y-axis travel 350 mm
Z-axis travel 300 mm
U-axis travel +/-75 mm
V-axis travel +/-75 mm
Control CNC Mitsubishi
Table surface area 780 x 630 mm
Working range 1,050 x 800 x 295 mm
Maximum workpiece weight 1,500 kg
Wire forward feed max. 23 m/min
Wire tensile stress 0.5 – 25 N
Wire diameter 0.1 – 0.3 mm
Wire cone 15°
Machine weight 3,500 kg
Machine dimensions 3,400 x 2,800 x 2,000 mm
