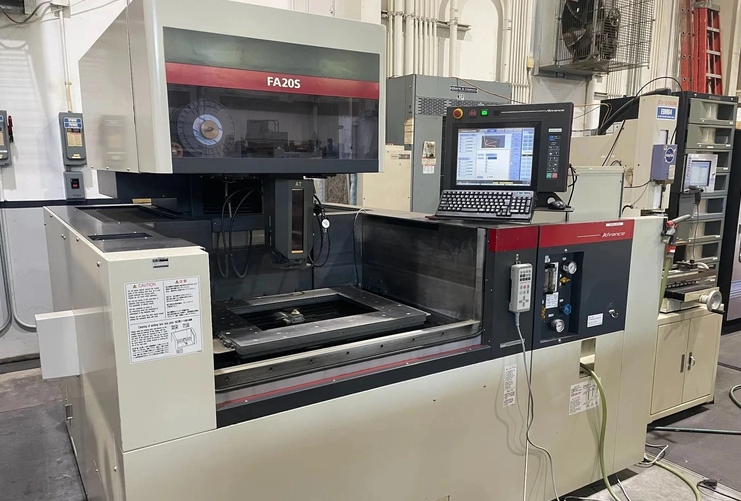

Mitsubishi FA20S ADVANCE

X-axis travel 19.69 in
Y-axis travel 13.77 in
Z-axis travel 11.81 in
U/V-axis travel 3 in
Number of axes 5
Taper capacity 15°
Table size length 30.71 in
Table size width 24.8 in
Table load capacity 3300 lb
Wire diameter minimum 0.004 in
Wire diameter maximum 0.012 in
Dielectric tank capacity 187 gal
Submerged machining Yes
Control CNC
Dimensions 82" x 103" x 80"
Weight 7700 lb

FEATURES / EQUIPMENT
Submerged machining to 11.8 inch
Moving column design
Direct drive 32 mm ball screws
Linear motion guideways
Digital 500 watt AC servo drive system
Linear glass scales
3-inch U-V taper unit
Automatic wire threading
15" LCD display
Touch panel
Keyboard
Mouse
20 GB hard drive
Anti-electrolysis power supply
Wire chopper
