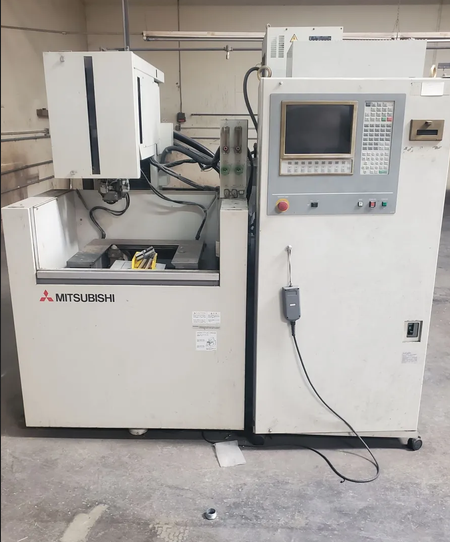

Mitsubishi FX 10

X-Axis Travel: 13.77"
Y-Axis Travel: 9.84"
Z-Axis Travel: 8.66"
U-Axis Travel: 1.25"
V-Axis Travel: 1.25"
Control: Mitsubishi 32-bit CNC
Submersible Cutting
Automatic Wire Threader (AWT)
Wire Chopper
Auto Tank Door
Built-In Dielectric Chiller
Filtration System
Max. Workpiece Size: 31.5" × 22.65" × 8.45"
Max. Workpiece Weight: 1,168 lb
Table Size: 24.8" × 20.8"
Wire Diameter: 0.0078"–0.011"
Max. Wire Feed Rate: 590.55 in/min
Taper Capacity: ±15° at 4" Thickness
Dielectric Tank Capacity: 400 L
Machine Weight: 4,000 lb
Machine Dimensions: 53" × 75" × 75"
