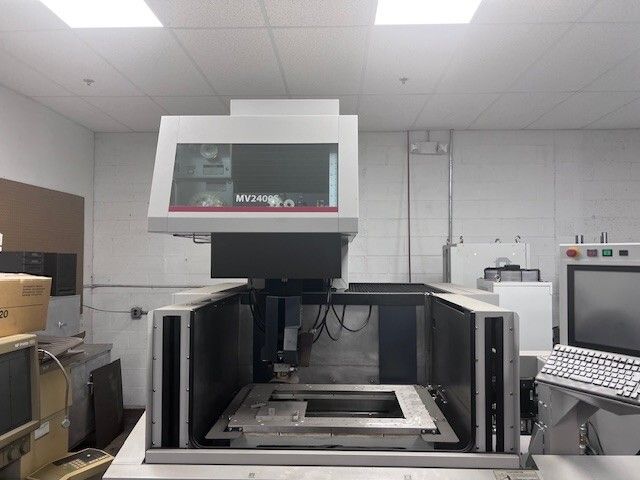

Mitsubishi MV2400-ST

MITSUBISHI MV2400-ST
2023

Max. workpiece dimensions 41.3″ x 32.3″ x 16.5″
Table dimensions 33″ x 25.2″
Machining range 23.6″ x 15.7″ x 16.7″
U-axis travel ±3.0″
V-axis travel ±3.0″
Resolution (absolute scales) 0.000002″
Taper angle 15° at 10.25″
Table rapid feed 51.2″
Wire diameter 0.004″–0.012″ (0.010″ standard)
Minimum wire thread start hole 0.020″
Max. workpiece AT height 16.5″
Wire tension 50–2500
Wire spooling speed 0–11.8 in/sec
Filter system paper cartridge (2x)
Filter precision 5 micron
Ion-exchange resin 1 ft³ (6.4 gal dry)
Filter tank capacity 260 gal
Dielectric system dimensions 40.3″ x 90.5″ x 61.7″
Overall machine dimensions 111.7″ x 137.4″ x 93.7″
Approx. machine weight 8100 lbs
