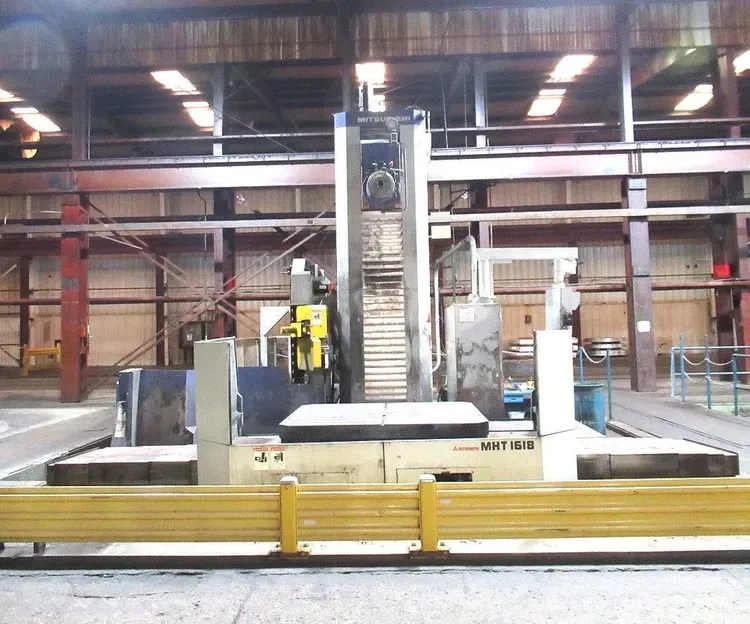

Mitsubishi M-HT 13/1618 5.1" 4,000 rpm

MITSUBISHI M-HT 13/1618
Year: 2009

Spindle diameter 5.1"
X-axis travel 118.1"
Y-axis travel 98.4"
Z-axis travel 51"
W-axis travel 19"
B-axis indexing 0.001 degree
Table width 71"
Table length 63.1"
Table size 63.1" x 71"
Table load capacity 17,600 lbs
Spindle taper 50
Spindle speed 4,000 rpm
Main motor 50 hp
Rapid traverse X-axis 472 IPM
Rapid traverse Y-axis 472 IPM
Rapid traverse Z-axis 472 IPM
Rapid traverse W-axis 236 IPM
Automatic tool changer 80 positions
Tool diameter 6"
Tool diameter with adjacent empty 9.4"
Tool length 19.7"
Tool weight 66 lbs
Machine weight 72,000 lbs
Control Fanuc 18iMB
200 total pairs of tool offsets
48 additional workpiece coordinate systems
Chip conveyor
Coolant through the spindle
Easy centering function
Full way covers
G-command mirror image functions G50.1 and G51.1
MP scales for X, Y, Z, and B axes
Coordinate system rotation functions G68 and G69
Programmable parameter input
Renishaw probe
Skip function G31
Spindle head cooling unit
Synchronous tapping
Machine can be floor or pit installed
