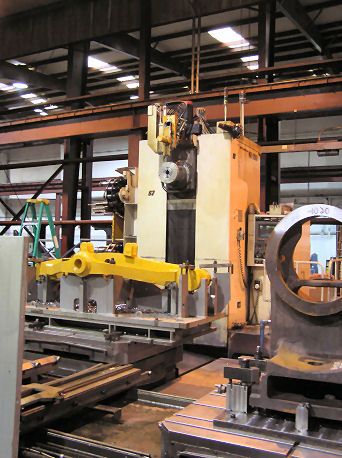

Mitsubishi MAF-HS 500 Spindle Diameter: 5.9" (150 mm) 2,500 RPM

MITSUBISHI MAF-HS 500
Year: 1994

Spindle Diameter: 5.9" (150 mm)
Spindle Taper: 50, Taper 7/24
Spindle Speed: 25 – 2,500 RPM (2-stage, infinitely variable)
Spindle Motor: 30 HP (22 kW) continuous
Control: FANUC 15M
Number of Pallets: 2
Pallet Size: 1500 x 1500 mm
Travel X: 98"
Travel Y: 78"
Travel Z (Spindle In/Out): 25.6" (650 mm)
W-Axis Extension: 1,000 mm
Rapid Traverse X: 630 IPM
Rapid Traverse Y: 474 IPM
Rapid Traverse Z: 316 IPM
Feed Rates (X/Y/Z): 0.08 – 157 IPM
Feed Motors: Fanuc AC Servo 4.7 HP (3.5 kW)
ATC Capacity: 80 Tools
Rotary Table: DIT-KH 1500 x 1500 mm
Distance Between Pallets: 118" (upgraded from 98")

Flood Coolant System
Coolant Thru Spindle
Chip Conveyor (2.5 m)
B-Axis Control
Automatic Pallet Changer (APC)
Helical Interpolation
Circular Thread Cutting
3D Tool Compensation
99 Additional Tool Offset Pairs
RS232C Remote Buffer
Custom Macro Common Variables (200 Total)
2nd Reference Point Return
Automatic Workpiece Measuring

Under Power – Excellent Condition
