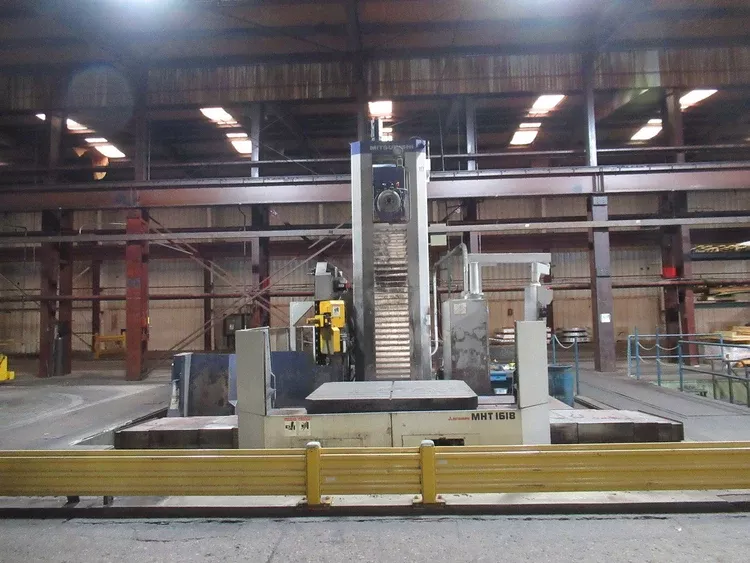

Mitsubishi MHT 13/1618 4000 RPM

MITSUBISHI MHT 13/1618
2008

Table size 63.1" x 71"
Table load capacity 17,600 lbs
Spindle diameter 5.1"
X-axis travel 118"
Y-axis travel 98.4"
Z-axis travel 51"
W-axis travel 19"
B-axis indexing 0.001 degree
Spindle speed 4000 RPM
Spindle taper 50
Main motor 50 HP
Automatic tool changer 80 ATC
Tool diameter 6", 9.4"
Tool length 19.7"
Tool weight 66 lbs
Rapid traverse X/Y/Z 472 IPM
Rapid traverse W 236 IPM
Cutting feed rate 0
Machine weight 72,000 lbs
Coolant through the spindle
MP scales for X, Y, Z, and B axes
Spindle head cooling unit
Easy centering function
G-command mirror image G50.1, G51.1
Programmable parameter input
Parameter coordinate system rotation G68, G69
200 total pairs of tool offsets
48 pairs of additional workpiece coordinate systems
Skip function G31
Synchronous tapping
Full way covers
Chip conveyor
FANUC 18IM CNC control
Renishaw probe
