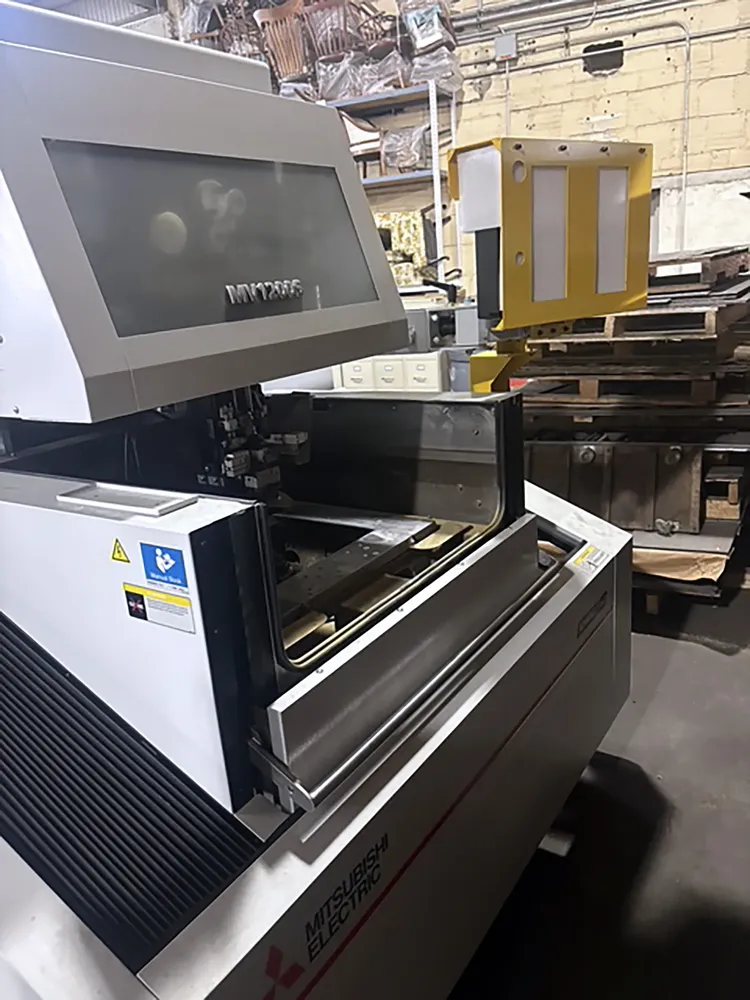

Mitsubishi MV-1200-S

Total cutting hours: 1708
Max workpiece dimensions: 31.9 x 27.6 x 8.5 in
Workpiece weight: 1100 lbs
Table dimensions: 25.2 x 17.7 in (3-sided)
Machining range: 15.7 x 11.8 x 8.7 in
U/V travel: ±2.4 x ±2.4 in
Resolution: 0.00002 in
Taper angle: 15° @ 8.0 in
Table rapid feed: 51.2 in/min
Wire diameter: 0.004–0.012 in (0.010 std)
Minimum wire thread start hole: 0.020 in
Maximum workpiece height: 8.7 in
Wire tension: 50–2500 g
Wire spooling speed: 0–11.8 in/sec
Filter system: paper cartridge (2x)

Control: Mitsubishi M800
19 in touch panel operator control
3-sided hardened stainless steel work table
Fine finish option (PF circuit, 6.04 micron Ra possible)
Power line filter (incoming power conditioner)
Integrated DI water coolant system
Integrated two-cartridge filtration system
15 kVA transformer, three-phase 240Δ / 208Y/120V
Mitsubishi advanced starter tooling kit included
Large vise kit included
