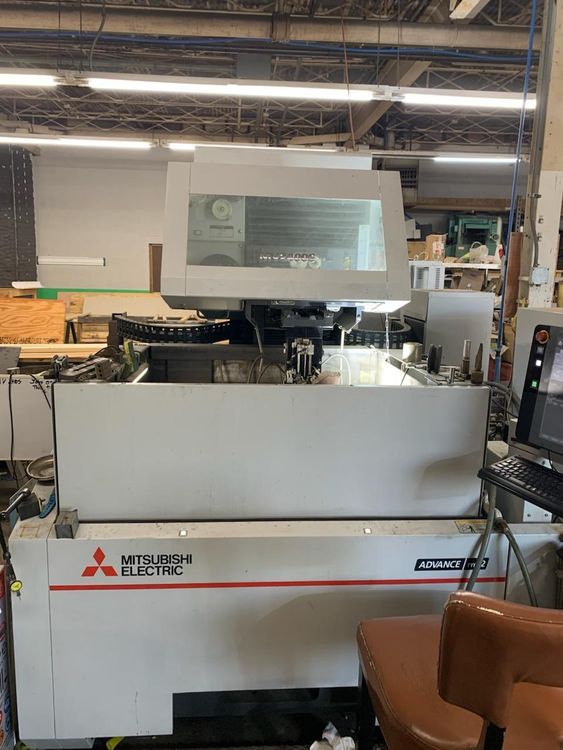

Mitsubishi MV2400S

X, Y, Z travels: 23.6" x 15.7" x 12.3"
U/V travel: +/- 3"
Table dimensions: 33" x 25.2" (3-sided)
Inside table dimensions: 41.3" x 32.3"
Maximum workpiece size: 23.6" x 15.7" x 12.3"
Maximum submerged workpiece weight: 3,300 lbs
Taper capacity: +/-15 deg @ 10"
Wire diameter range: 0.004"–0.012"
Wire guides included: 0.010"
Minimum resolution: 0.000002"
Table rapid feed: 51.2"/min
Minimum hole diameter for autothread: 0.020"
Maximum wire spool size: 22 lbs
Filter tank capacity: 260 gal
Dimensions: 106" x 120" x 85"
Weight: 8,100 lbs
Control: M800 D-Cubes with 17" touchscreen
10 second threading system
New-style cut-wire collection system
AT device for various wire types including coated wires
Wire break-point insertion and submerged threading
New-style wire tension system
AT self-cleaning process
VF monitor – real-time cutting speed graphic
New-style work tank seal plate mechanism
