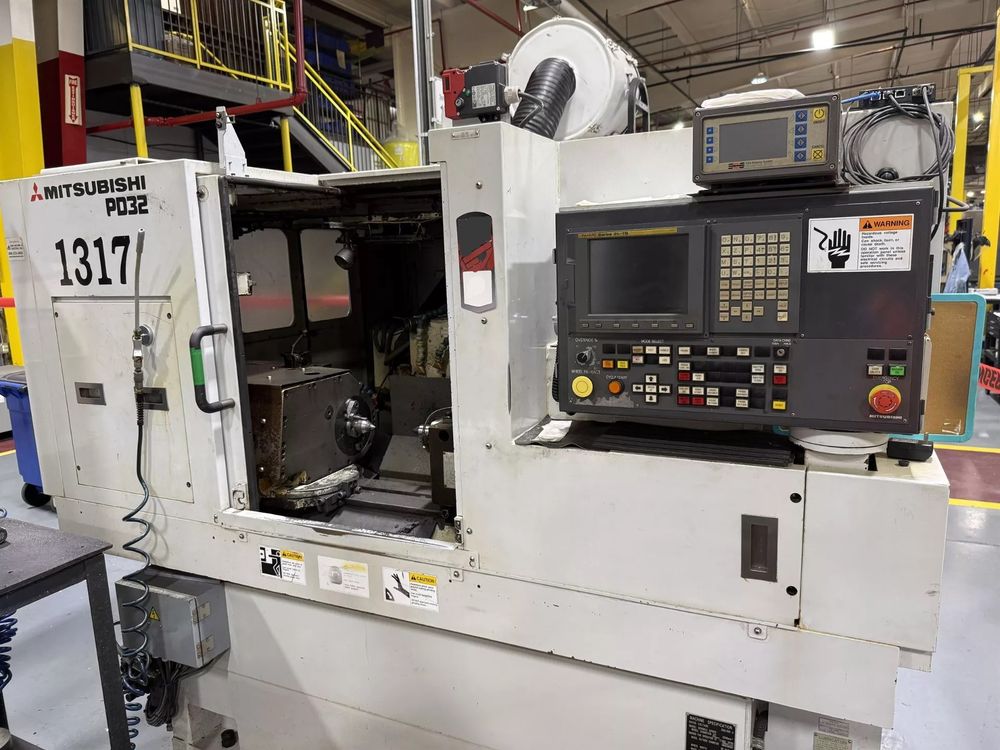

Mitsubishi PD32-B50A

Table Rapid Traverse: 66 ft/min
Table Feed Range: 0.00004" – 787.4" ipm
Wheelhead Rapid Traverse: 66 ft/min
Wheelhead Feed Range: 0.00004" – 787.4" ipm

CNC Control: Fanuc 21i-TB
Conversational Programming Software
Lateral Locator
Hydraulic Tailstock
Automatic Wheel Balance System
Coolant System with Magnetic Separator
Mist Collector

Swing: 12.6"
Max Center Distance: 19.7"
Max Workpiece Diameter: 11.8"
Max Workpiece Weight: 330 lbs

Wheel Diameter: 20"
Wheel Width: 4.7"
Wheel Bore: 8"
Wheel Peripheral Speed: 11,800 sfpm

Workhead Speed: 10 – 500 rpm
Workhead Taper: #4 MT
Tailstock Taper: #5 MT
Tailstock Stroke: 5.9"

Wheelhead Motor: 15 hp

Machine Dimensions: 124" x 106"
Machine Weight: 15,400 lbs
