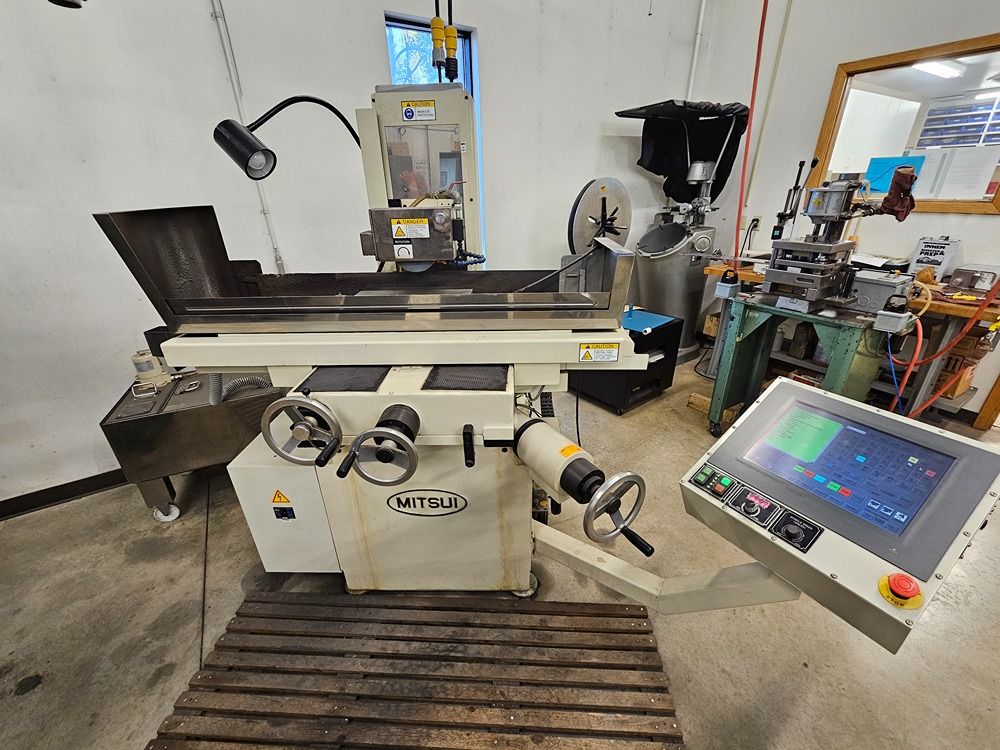

Mitsui 618PC-NC

Max Longitudinal Travel: 19.75”
Max Cross Travel: 7”
Max Height Table to Spindle Center: 15.75”
Table Work Surface: 19” x 6” Variable Chuck
Vertical Feed per Handle Revolution: 1 mm
Minimum Manual Incremental Feed (Vertical): 0.0001”
Minimum Programmable Incremental Feed (Vertical): 0.00001”
Continuous Feed Speed (Vertical): 0–13”/min
Number of Spark Outs: Programmable
Cross Feed per Handle Revolution: 5 mm
Minimum Manual Incremental Feed (Cross): 0.001”
Minimum Programmable Incremental Feed (Cross): 0.00001”
Continuous Feed Speed (Cross): 0–13”/min
Spindle Speed: 3460 RPM
Grinding Wheel Size: 8” x 3/4” x 1-1/4”
Drive System Cross: LM Guide & Ball Screw
Drive System: LM Guide & Ground Screw
Longitudinal Feed: Hardened Steel Ways with Linear Ball Bearings & Cable Drum
Machine Dimensions: 100” x 63” x 70” H
Machine Weight: 2440 lbs
Power Requirement: 220V, 3 Phase
Control: PC Motion NC Touch Screen Control
Coolant System: Stainless Steel Coolant Tank & Pump
Control Axes: 3 Axis Simultaneous Controlled
