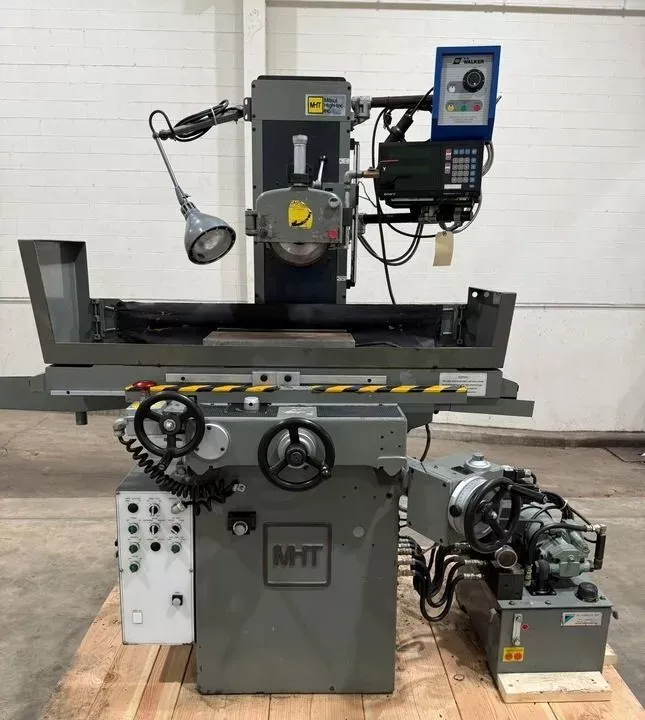

Mitsui MSG-250H-2AH

Table Working Surface 8″ x 18″
Maximum Surface Ground 9-1/2″ x 20″
Distance Between Table Surface & Spindle Center 22-1/2″
Grinding Wheel 8″ x 3/4″ x 1-1/4″
Longitudinal Travel 20″
Cross Travel Automatic 9-1/2″
Cross Travel Manual 10″
Vertical Travel 16″
Longitudinal Feed 5 – 68 FPM
Automatic Crossfeed per Stroke 0.02″ – 0.05″ IPM
Automatic Vertical Feed Increments 0.0001″ – 0.001″
Rapid Crossfeed Rate 2 – 17 IPM
Elevating Handwheel Graduation 0.0002″
Crossfeed Handwheel Graduation 0.0008″
Crossfeed Vernier 0.0001″
Spindle Drive 1.5 kW, 3 Phase, 60 Hz, 200-220 V
Machine Dimensions 56″(L-R) x 52″(F-B) x 78″(H)
Machine Weight 3,490 Lbs.
Automatic Incremental Downfeed of Grinding Wheel
Hydraulic Longitudinal & Power Crossfeeds
Fine Feed Option Crossfeed 0.000050″ Graduation
8″ x 18″ Walker Chuck with Neutrifier
Sony LH-11 1-Axis Digital Readout
Ball Bearing Table Ways
Hardened & Ground Ways on Table, Carriage/Saddle & Column
Over the Wheel Diamond Dresser
Automatic One Shot Lubrication System
