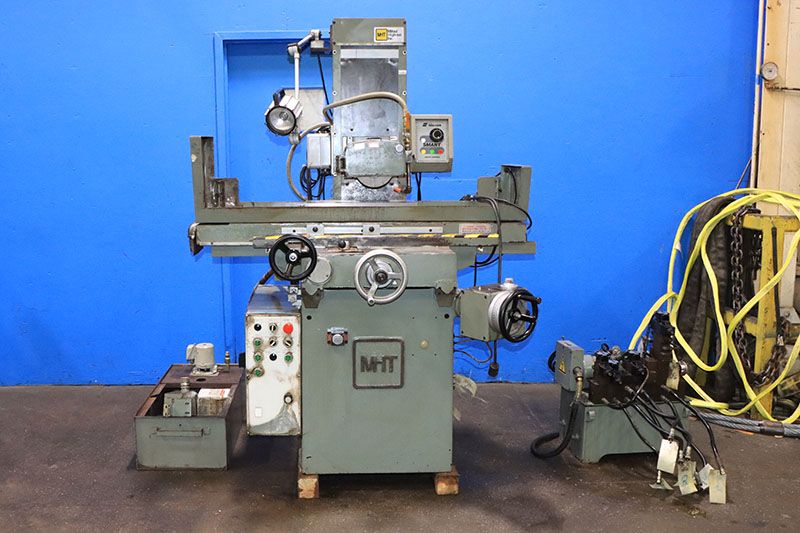

Mitsui MSG-250H2AH

X-axis travel: 20 in
Y-axis travel: 9.5 in
Z-axis travel: 16 in

Longitudinal feed: 5–68 FPM
Cross feed (auto per stroke): 0.02–0.05 in
Vertical feed increments: 0.0001–0.001 in (10 steps)
Rapid cross feed rate: 2–17 IPM

Table working surface: 8 in × 19 in
Max grinding size: 9.5 in × 20 in
Max distance table surface to spindle center: 22.5 in

Wheel size: 8 in × 0.5 in × 1.25 in
Spindle motor: 2 HP
Spindle drive: super-precision
Control/features: automatic incremental downfeed, surface or plunge mode selector, hydraulic longitudinal feed, power cross feed
Chuck: 8 in × 18 in electromagnetic chuck
Table system: roller bearing table
Lubrication: automatic one-shot lubrication system
Hydraulic system: external hydraulic unit included
Coolant system: included
Work light: included
Wheel dresser: not specified

Power: 3×460 V (wired 220 V)
Weight: approx. 3,490 lb
