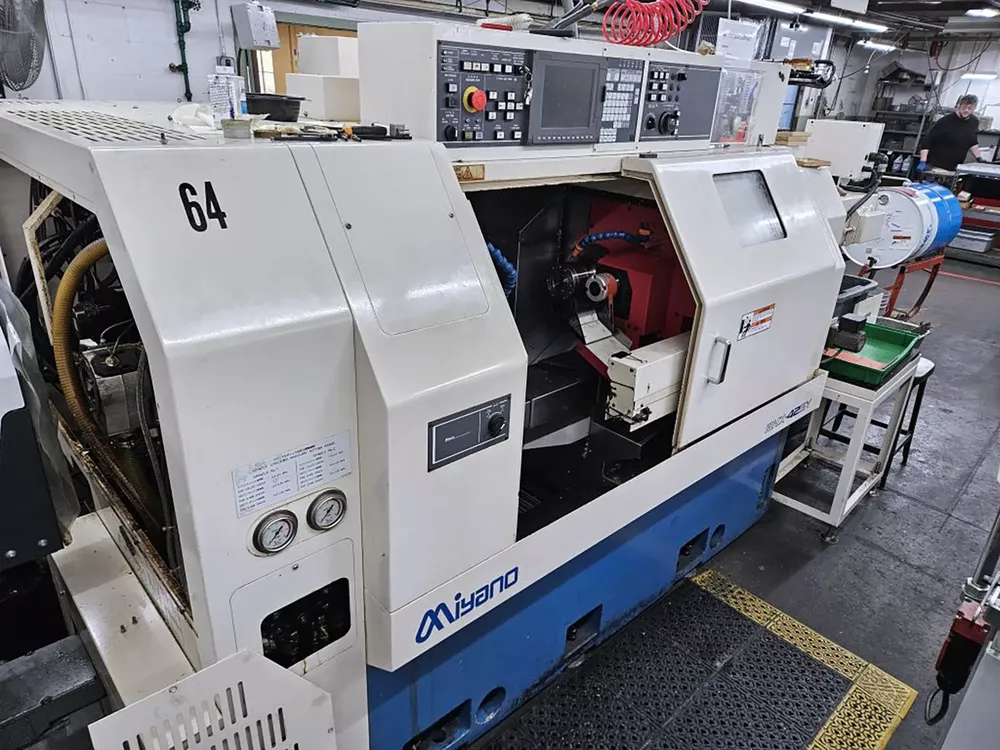

Miyano CNC CONTROL 6000 rpm BNX-42SY 2 Axis

LNS Quickload Servo 65 barloader
High pressure coolant
Miscellaneous live and standard tool holders

Maximum bar diameter SP1 Ø42 mm
Maximum bar diameter SP2 Ø34 mm (Ø42 mm / OP)
Standard machining length 100 mm
Number of spindles 2
Spindle speed SP1 6000 rpm
Spindle speed SP2 5000 rpm
Closing tube diameter SP1 Ø42 mm
Closing tube diameter SP2 Ø30 mm
Power chuck size SP1 5 in
Power chuck size SP2 4 in
Number of tool post 1
Type of tool post 12-station
Opposite side distance of tool post 300 mm
Max turning radius of tool post Ø505 mm
Tool dimensions 20 mm square
