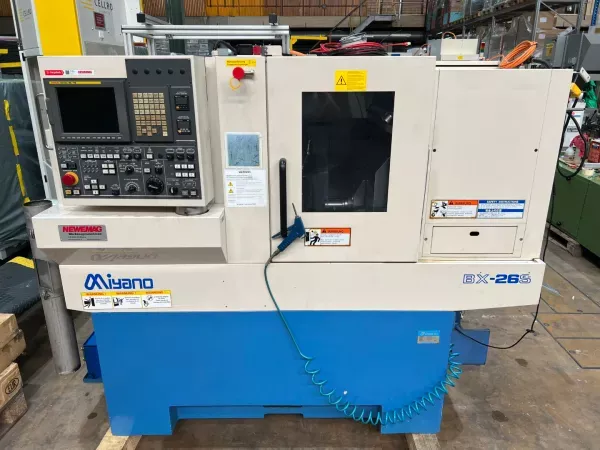

Miyano CNC CONTROL Variable Speed BX-26S CNC Lathe 3 Axis

Collet clamping unit with main and sub spindle: 26 mm
Max turning length with part gripper: 67 mm
Max part length: 300 mm / Ø26
Max drilling diameter L/R spindle: Ø12 mm
Max thread diameter L/R spindle: M8
Spindle motor power: VAC 2.2/3.7 kW
Spindle speed range L/R: 80–8000 rpm

L-spindle Z1 travel: 70 mm
R-spindle X2 travel: 180 mm
R-spindle Z2 travel: 238 mm
Tool slide: Vertical linear slide
Tool positions: 16
Tool positions slide 1: 6/4
Tool shank size: 16 mm
Internal toolholder bore: Ø20 mm
X1-axis travel: 135 mm
Y1-axis travel: 260 mm
Turning tools (L-spindle) X/Y unit: 2/2
Turning tools (L/R spindle) Z unit: 2+2
Driven tool speed range: 100–4000 rpm
Driven tool motor power: 0.5 kW / 0.5 kW
Max drill size for driven tools: Ø8 mm
Max tapping size for driven tools: M6
Tool slide 2: Vertical linear slide
Tool positions slide 2: 7
Tool positions slide 2 configuration: 3/4
Tool shank size: 16 mm
Internal toolholder bore: Ø20 mm
Y2-axis travel: 215 mm
Machine height: 1670 mm
Floor space (W×D): 2320 × 1335 mm
Machine weight: 3000 kg

Equipment / Features
Toolholders (as shown in interior photo)
Fire extinguishing system
Control for high-frequency spindle
High-frequency spindle
Chip conveyor
Oil mist separator
