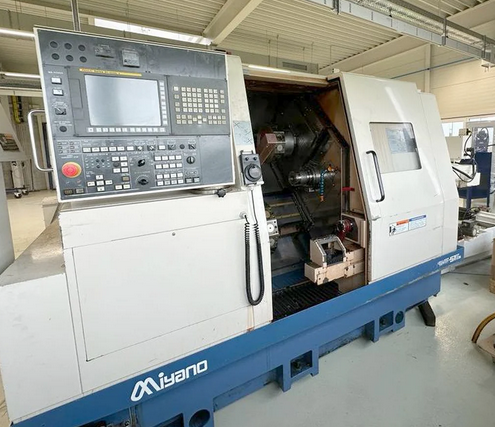

Miyano FANUC Series 31i-MODEL A 5000 RPM BNE-51 S5 3 Axis

Upper Turret X-Axis Travel: 175 mm
Upper Turret Z-Axis Travel: 380 mm
Lower Turret X-Axis Travel: 145 mm
Lower Turret Z-Axis Travel: 380 mm
Back Spindle Stroke: 450 mm
C-Axis: 0.001°
Control: FANUC Series 31i-MODEL A
Coolant System
Electronic Handwheel
Parts Catcher
Workpiece Conveyor
Chip Conveyor
Set of Toolholders
Status Light
Max Bar Diameter: 51 mm
Spindle Bore: 52 mm
Max Turning Diameter: 41 mm
Max Turning Length: 90 mm
Main Spindle Speed: 0–5000 RPM
Main Spindle Power: 11 / 15 kW
Back Spindle Speed: 7000 RPM
Back Spindle Power: 3.7 / 5.5 kW
Driven Tool Power: 2.5 kW
Feeds: 0.0001–60 mm/min
Rapid Traverse X: 18 m/min
Rapid Traverse Z: 20 m/min
Turret 1 Positions: 12
Turret 2 Positions: 12
Driven Tools Turret 1: 12
Driven Tools Turret 2: 12
Tool Shank: 20 mm
Max Drill Capacity: 13 mm
Max Tap Capacity: M8
Air Connection: 6 bar
Voltage: 380 V / 50 Hz / 3 Phase
Total Power: 44 kVA
Weight: 7800 kg
Dimensions: 2690 x 2080 x 1925 mm
