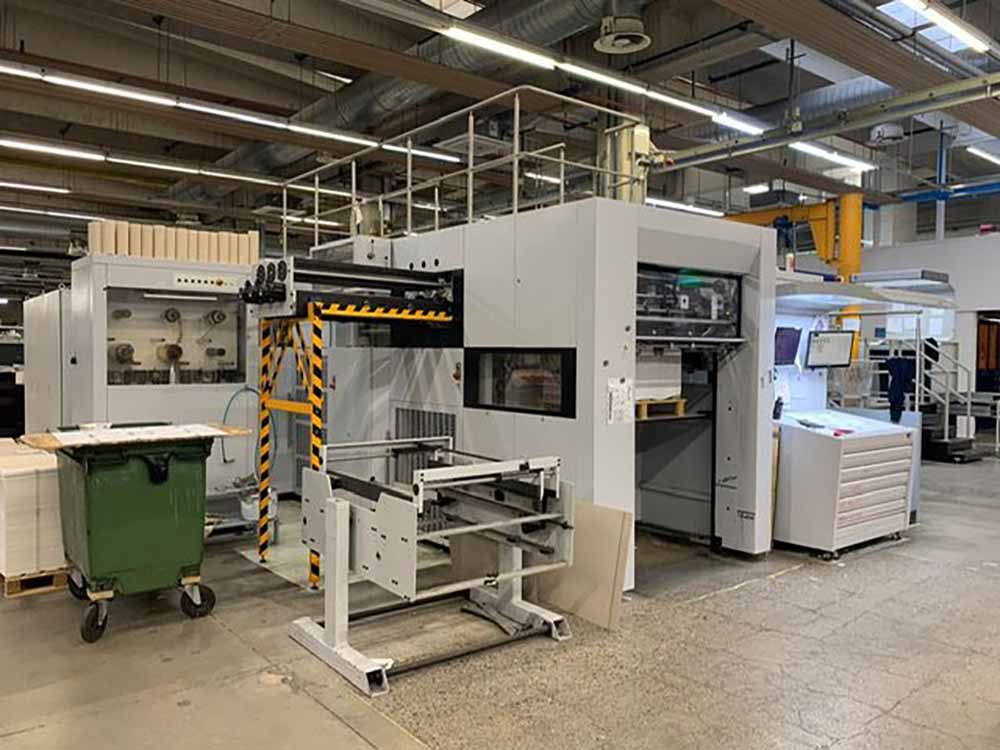

Mk DUOPRESS 106 FCS

Options :
Hot foil stamping, die-cutting, stripping and blanking in one single production process.
Suitable for luxury packaging of cosmetics, tobacco, confectionery or liquor
The Duopress is a unique die-cutting machine with two cutting stations with the first station used for hot foil stamping.

Equipped with:
Hot Foil Stamping
Foil guiding longitudinal and transversal
Brush system for foil dispose
Foil advancing program for optimal foil saving
20 heating zones
Precise hologram stamping Stripping
Quick lock systems for all tools (top, middle, bottom)
Fine adjustment of tools with position indicators
Electronic sheet monitoring
Pre-make-ready table (optional) Blanking
Quick lock systems for all tools
Fine adjustment of tools with position indicators
Non-stop operation
Automatic pallet change system

Specification:
Paper (min.) 90g
Carbon Board (max.) 2,000g
Corrugated Board (max.) 2 mm
Sheet size (max.) 760 x 1,060mm
Sheet size (min.) 350 x 400mm
Cutting pressure (max.) 2.5MN / 250t
Machine speed (max.) 5,000 s/h
Hot foil stamping speed (max.) 5,000 s/h
Temperature 40? - 180
Number of heating zones 20
Foil advancing shafts (per station) 3 longitudinal, 2 transversal
Foil diameter (longitudinal) 250 mm
Foil diameter (transversal) 200 mm
Foil width 20 1,060 mm
