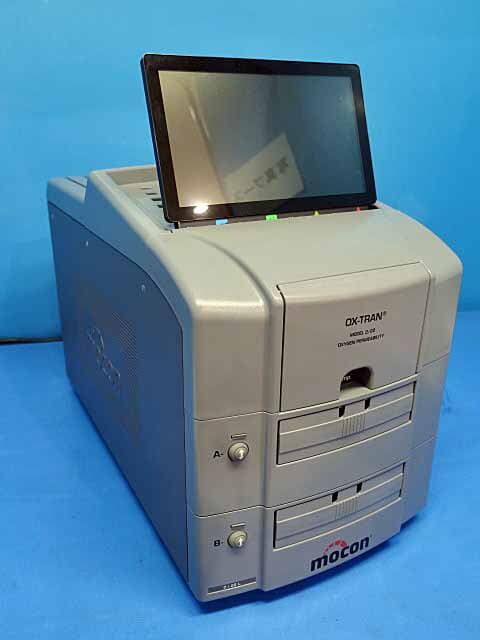

Ametek, Mocon OX-TRAN2/22 L Oxygen Permeability Tester

Main Specifications
* Type: L
* Test Cells: 2
* Test Cell Area: 50 cm2
* Detector: Self-humidifying coulometric sensor
* Standard Sample Range: Lower limit 0.01 cc/m2/day
(Film) Upper limit 200 cc/m2/day
* Test Temperature Range: 10-40°C
* Test Humidity Range: 0-90% Rh
* Installation Environment: 22±2 °C, 20-80% RH (non-condensing)
* Power Supply: AC100V 50/60Hz
* External Dimensions: Approx. W310 × D580 × H400 (mm)
• Weight: Approx. 43kg
• Accessories: Castered stand for main unit, N2+H2 (2%) cylinder cabinet (floor-standing type)

Equipment Status
Simple instruction manual (Japanese) included
