Modern Packaging SR8DC, Cup Filler
AMERICA North (USA-Canada-Mexico)

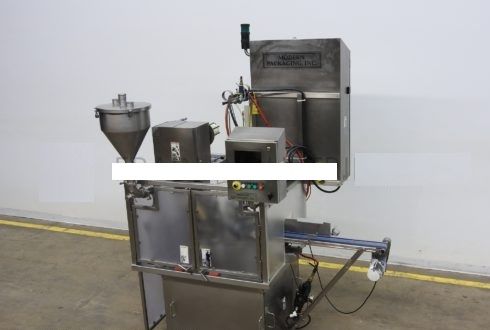

Modern Filler Cup Rotary SR8DC
Modern Model SR8DC, automatic, 8 pocket, intermittent motion,
stainless steel, rotary cup filler.
Roll stock film and heat sealer rated from 10 to 40 cups per minute –
depending on materials and application.
Fill range: 1/2oz to 14oz.
Container size up to: 3" in diameter (with proper change parts).
Equipped with 24" OD rotary turn table and has (8) 4.5 ID cup stations,
screw cup despencer, 16"OD x 18" long product hopper, single head piston filler
with 1-1/2" OD x 5" long single piston and 1-1/2" positive cut off nozzle,
no container / no fill and roll stock film applicator,
single head pneumatic heat sealing head and sweep arm reject to 36" long x 5" wide discharge conveyor.
Control panel has A/B Micrologix controller, with touchpad, (touch pad needed)
and liquid level controls with start, stop, reset, e-stop and statis light bar.
Mounted on stainless steel base with height adjustable locking legs
and swing door safety guarding.
OAD: 84" L x 64" W x 103" H
