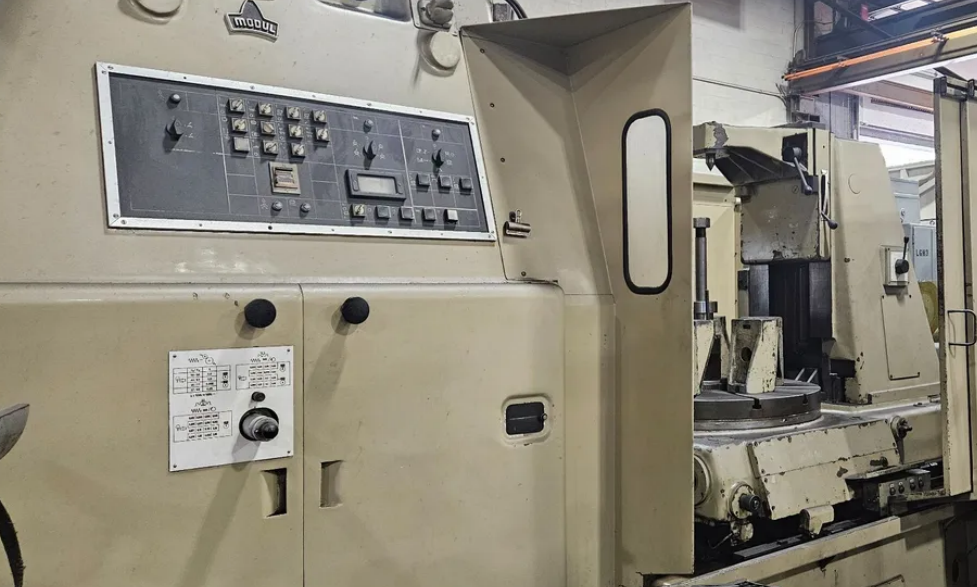

Modul ZFWZ 1250 200 rpm Maximum gear diameter: 1250 mm

Ref : 2804814-3-AW

Condition : Used

Manufacturer : Modul

Model : ZFWZ 1250

Spindle Speed : 200 rpm

Short Description : Maximum gear diameter: 1250 mm

Year(s) : 1979

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Vertical type
Cutting width: 600 mm
Module range: 2–16
Maximum hob size: 240 × 280 mm
Table diameter: 1020 mm
Spindle speed: 28–200 rpm
Axial feed rate: 0.28–8 mm/min
Radial feed rate: 0.1–2 mm/min
Tangential feed rate: 0.16–4 mm/min
Stand tilt: ±45°
Main motor: 5 / 19.5 kW
Rapid motor: 12.5 kW
Maximum workpiece diameter without tailstock: 1250 mm
Maximum workpiece diameter with tailstock: 800 mm
Change gears
Hob arbors
Work arbor
Machine dimensions: 4500 × 2100 × 3300 mm
Weight: 16200 kg
