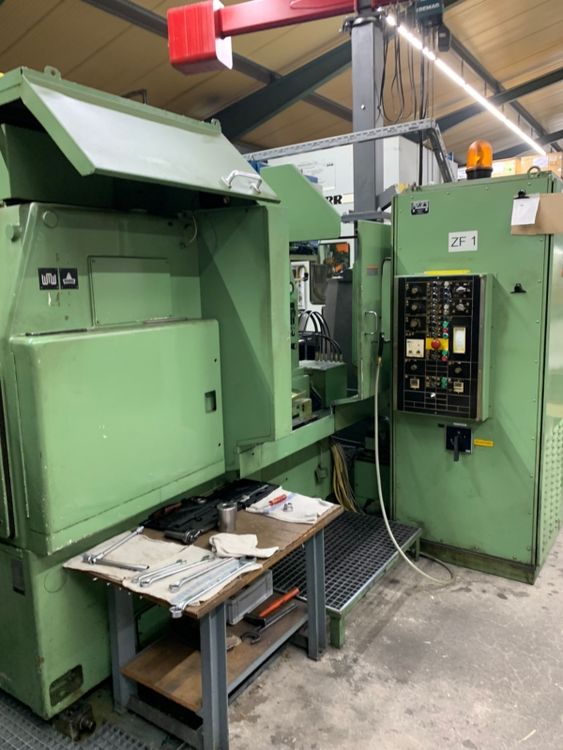

Modul ZFWZ 250/5 180 RPM Gear cutting machines / Gear Hobbing Machine - Vertical

MODUL ZFWZ 250/5
1989

Max wheel diameter 400 mm
Min module 1
Max module 6
Table diameter 370 mm
Max wheel diameter with counterstay 340 mm
Max wheel diameter without counterstay 400 mm
Max axial offset 275 mm
Max tangential adjustment 100 mm
Tooth helical angle 45°
Max cutter diameter 145 mm
Max hobbing length 170 mm
Hob speed range 63–180 RPM
Axial feed infinitely variable 0.2–10 mm/rev
Tangential feed infinitely variable 0.1–5 mm/rev
Radial feed for spur gears 0.1–4 mm/rev
Radial feed for worm gears 0.025–1 mm/rev
Rapid axial traverse 500 mm/min
Rapid tangential traverse 250 mm/min
Rapid radial traverse for spur gears 400 mm/rev
Rapid radial traverse for worm gears 100 mm/rev
Motor power 7.4 kW
