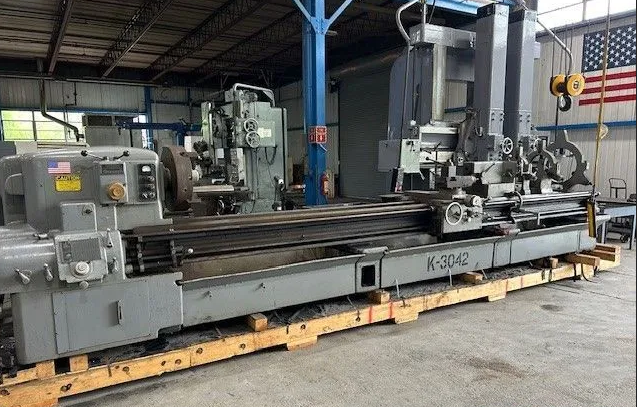

Monarch Engine Lathe 1,500 RPM 613

MONARCH 613
Year: 1980


SWING OVER BED ........................ 28"
SWING OVER CROSS SLIDE ................ 19.5"
DISTANCE BETWEEN CENTERS .............. 192"
WIDTH OF BED .......................... 19-1/2"
HOLE THRU SPINDLE ..................... 2-1/16"
SPINDLE TAPER ......................... D1-6"
SPINDLE SPEED RANGE (36) .............. 12 - 1,500 RPM
THREADING RANGE ENGLISH ............... 1.8 - 140 TPI
THRREADING RANGE METRIC ............... .225 - 17.5 mm
FEED RANGE ............................ .001 - .0803 IPR
TAILSTOCK SPINDLE TRAVEL .............. 9"
TAILSTOCK SPINDLE DIAMETER ............ 5-1/4"
TAILSTOCK SPINDLE TAPER ............... #5MT
APPROX WEIGHT ......................... 20,500 LBS

INCH & METRIC THREADING CAPABILITY
TAPER TURNING ATTACHMENT
FLAME HARDENED BED
FOURWAY RAPID TRAVERSE
21" DIAMETER 4-JAW CHUCK
6" CAPACITY ROLLER TYPE STEADY REST
12" CAPACITY ROLLER TYPE STEADY REST
18" CAPACITY ROLLER TYPE STEADY REST
THREAD DIAL INDICATOR
COOLANT SYSTEM WITH CHIP PANS
25 HORSE POWER MAIN MOTOR
