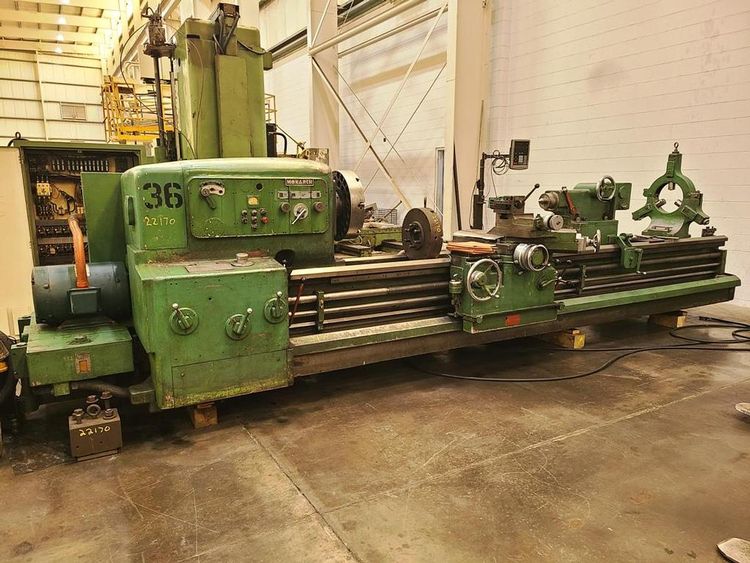

Monarch Engine Lathe 1250 RPM 2516-20 x 144 Series 80 Dyna Shift

Swing Over Bed Ways: 35"
Swing Over Cross Slide: 19-1/2"
Spindle Bore: 3-1/8"
Spindle Nose Type: D1-8 Camlock
Spindle Speeds: 10–1250 RPM
Threads: 1/2 to 28 TPI
Feeds: 0.0030" to 0.1683" per revolution
Tailstock Quill Diameter: 5-3/4"
Tailstock Set Over: 1/2" Each Direction
Tailstock Quill Travel: 10"
Digital Readout System: Newall Model C80, Two-Axis
Thread Chasing Dial
Hydraulic Speed Selecting and Shifting
Quick Change Tool Post with Assorted Tool Holders
Hydraulic Variable Speed Rapid Traverse to Carriage and Cross Slide
Inch Graduated Dials on Carriage, Cross Slide and Top Compound
Fixed Angle Top Compound for Tracer System – Non-Swiveling
Geared Hand Crank Tailstock Positioner
Bijur One Shot Lubrication System on Carriage and Tailstock
Chuck and Camlock Wrenches
14" Diameter Drive Plates with D8 Camlock Mount (2)
13" Diameter Roller Type Steady Rest
18" Cushman 3 Jaw Chuck with 2 Piece Jaws and Hard Reversible Top Jaws, D8 Mount
21" Cushman 4 Jaw Chuck with 1 Piece Hard Reversible Jaws, D8 Mount
#6 MT Dead Center in Headstock, Removable
Non-Removable Live Center Built Into Tailstock Quill
Large Boring Bar Tool Holder, 9" x 10" x 6-1/2" High with 3" Thru Hole
Full Length Chip Pan
Hardened and Ground Bed Ways
Built-In Coolant Pump
Micrometer Carriage Stop
Air Gage Tracer System with Full Length Template Bar – PARTS MISSING
Main Motor: 30 HP, Wired for 3 Phase, 60 Hz, 208/230/460 V
Presently Wired for 440 Volt Operation
Overall Size: 273" L x 83" FB x 79" H
Weight: 24,000 Lbs
