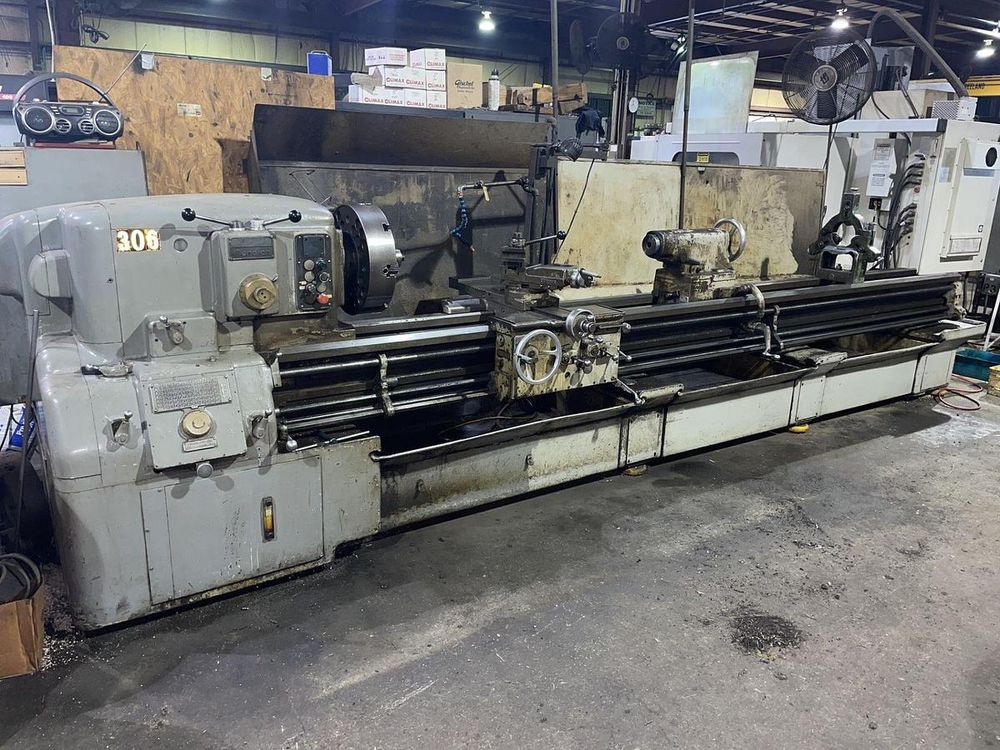

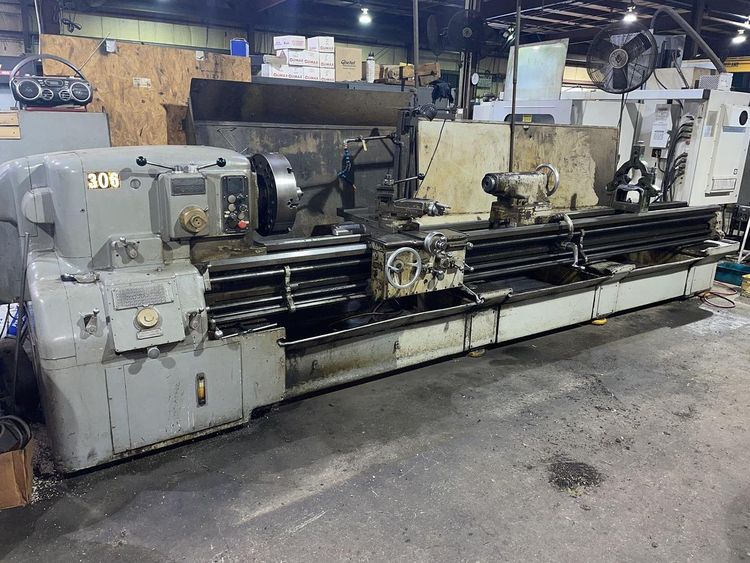

Monarch Engine Lathe 1500 RPM 2516X150

MONARCH 2516X150

Spindle bore: 2.0625"
Swing over bed: 24"
Swing over carriage wings: 24"
Swing over cross slide: 16"
Distance between centers: 150"
Cross-slide travel: 5"
Tailstock spindle diameter: 4.5"
Tailstock spindle travel: 7"
Tailstock taper: #4 MT
Spindle speed range: 12 to 1500 RPM
Carriage feed range: 0.001 to 0.068 IPR
Threading range: 1 to 120 TPI
Bed width: 17"
Chuck size: 18"
Chuck type: 4-jaw
Spindle nose: D-1 6" ASA cam lock
Machine dimensions: 235" x 57"
Machine weight: 13,500 lbs

Power rapid traverse
Steady rest
Hardened ways
Coolant and chip pan
