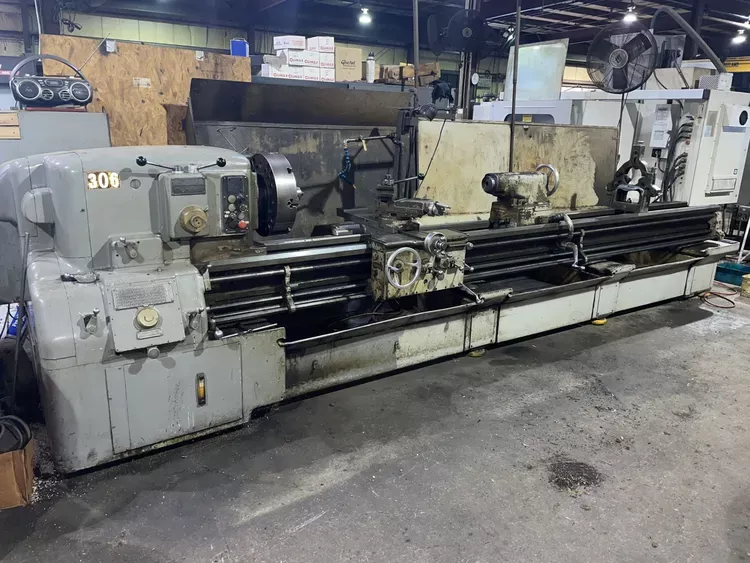

Monarch Engine Lathe 1500 RPM 2516X150

Swing over bed: 24 in
Distance between centers: 150 in
Swing over cross slide: 16 in
Hole through spindle: 2.0625 in
Spindle speed range: 12–1500 RPM
Number of spindle speeds: 36
Longitudinal feed range: 0.001–0.068 IPR
Thread range: 1–120 TPI
Cross slide travel: 5 in
Bed width: 17 in
Tailstock taper: MT4
Tailstock spindle diameter: 4.5 in
Tailstock spindle travel: 7 in
D1 camlock spindle nose: 6 in
4-jaw chuck: 18 in
Power rapid traverse
Hardened ways
Steady rest
Full-length coolant and chip pan
Overall length: 235 in
Overall depth: 57 in
Machine weight: 13,500 lb
