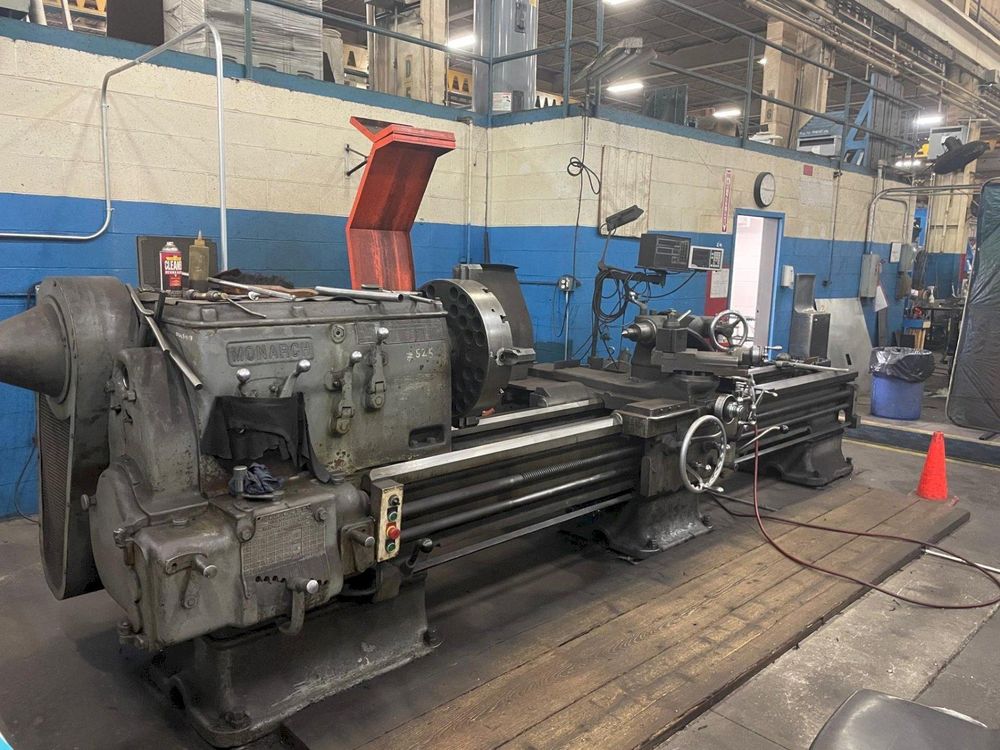

Monarch Engine Lathe Variable Speed 20" C

Ref : 2791903-3-MT

Condition : Used

Manufacturer : Monarch

Type : Engine Lathe

Spindle Speed : Variable Speed

Model : 20" C

Year(s) : 1953

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Swing: 30.5"
Distance between centers: 120"

Spindle nose: D1-8 camlock
Spindle speeds: 16
Spindle bore: 2-1/4"
Motor power: 20 HP

Thread range: 3/4 – 46 TPI
Number of thread changes: 48
Feed rate range: 0.0038" – 0.240 IPR
Number of feed rates: 48
Tailstock taper: #5 MT

Digital readout: Fagor
4-jaw chuck
3-jaw chuck
Quick change tool post
Live center
Hinged chuck guard
Quick-change gearbox for threads and feeds
